S6500 5.9kVA Single Phase Diesel Generator

Description

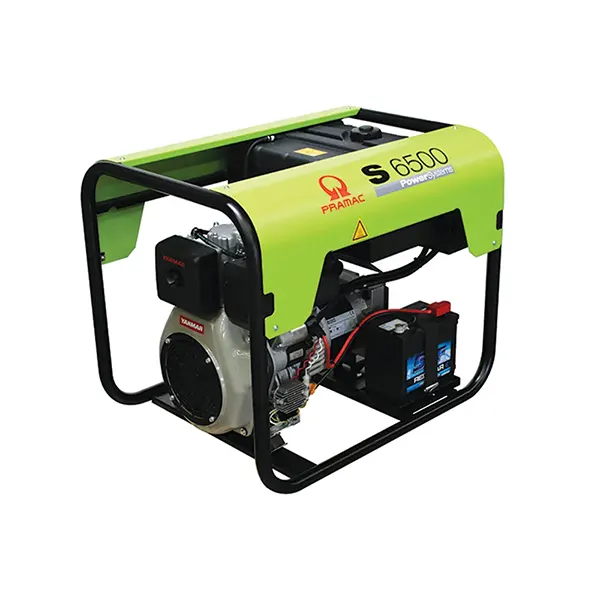

Pramac S6500 – 5.9 kVA Single Phase Diesel Generator

The complete diesel package. Yanmar engine, brushless alternator, 16 hours on a tank.

The S6500 diesel generator delivers 5.9 kVA / 5.3 kW emergency standby and 4.8 kVA / 4.4 kW continuous power at 230 V, 50 Hz single phase, 0.9 power factor, from a Yanmar L100N engine with electric start. The 435 cm³ air cooled diesel runs at 3000 RPM with mechanical governor and a 1.6 litre oil capacity, driving a brushless class H, IP23, two pole alternator with capacitor voltage regulation.

The 24 litre tank runs 16.44 hours at 75% load and 12.37 hours at 100%, using 1.46 litres per hour at 75%. At 114 kg dry and 840 x 641 x 696 mm it shares the S Series roll bar frame with removable side covers, two solid rubber wheels and a folding handle.

The CONN DPP control panel carries a keyed off/on/start selector, a connector for the optional AMF automatic mains failure panel or RSS wireless remote start/stop, digital voltmeter, hours counter and frequency meter, with a circuit breaker, differential protection (DPP), a 10 A DC fuse, low oil pressure protection and a 12 V 10 A battery charger output. Outlets are three AS/NZS 3112 15 A 250 V sockets. Transport kits with fixed or folding handles are available.

S6500 at a glance

• 5.9 kVA / 5.3 kW emergency standby, 4.8 kVA / 4.4 kW continuous
• Yanmar L100N Electric, 435 cm³, air cooled diesel, 3000 RPM, electric start, 1.6 L oil capacity
• Brushless class H alternator, IP23, 2 pole, capacitor regulation
• 230 V, 50 Hz, single phase, 0.9 power factor
• 24 L fuel tank, 1.46 L/h at 75% load, 1.94 L/h at 100% load
• Runtime 16.44 h at 75% load, 12.37 h at 100% load
• CONN DPP panel: keyed selector, AMF/RSS connector, voltmeter, hours counter, frequency meter, circuit breaker, DPP, low oil pressure, 12 V 10 A charger output
• Three AS/NZS 3112 15 A 250 V outlets
• Dimensions 840 x 641 x 696 mm, dry weight 114 kg

S Series – Portable Generators

Professional power. Premium performance.

The S Series is a top-tier range of portable generators engineered for intensive professional use. With robust Honda petrol or Yanmar and Lombardini diesel engines, these sets are built to deliver dependable power in the most demanding environments, from disaster relief and rental fleets to industrial and construction sites.

Designed around safety, runtime and ease of use, S models feature large 24 to 27 litre fuel tanks, control panels with optional connectivity for AMF automatic mains failure and remote start systems, and a compact one-sided layout that centralises the controls for fast access. Heavy-duty tubular steel roll bar frames with removable side covers and integrated transport kits make handling and transport straightforward.

Range Key Features

• Honda GX petrol or Yanmar and Lombardini diesel engines
• Recoil or electric start depending on model
• Large fuel tanks with analogue fuel gauge, bayonet filler cap and in-line fuel filter
• AMF and RSS compatible CONN control panels on selected models
• Australian AS/NZS 3112 15A outlets
• Two solid rubber wheels, non-slip folding handle and two lifting points
• Optional differential (DPP) protection

Frequently Asked Questions

What is the CONN connector for?

CONN models carry a connector on the control panel for the optional AMF automatic mains failure panel or the RSS wireless remote start/stop. The AMF panel monitors the mains, starts the generator and transfers the load when the supply fails, then stops the set when the grid returns. The RSS gives wireless start and stop from up to 90 metres.

Which applications suit the S Series?

Intensive professional use: construction sites, rental fleets, disaster relief, farms, events and backup for small business, anywhere a portable set has to run long hours day after day.

How long will the S6500 run on a full tank?

The 24 litre tank gives 16.44 hours at 75% load, or 12.37 hours at 100% load, using 1.46 litres per hour at 75%.

Is an automatic transfer switch (ATS) included?

No. An automatic transfer switch is not included unless it is listed in the product description above. Ozwide Power can supply a correctly rated ATS with the generator, so ask for a package price when you enquire.
