The standard GRW panel: an automatic mains-failure controller with a 4-pole automatic circuit breaker, all in the segregated control / power / socket cabinet. It runs the set in manual, automatic or remote-start modes and comes with a full scope of protection and instrumentation as standard.

• Controller: Deep Sea DSE7320 MKII (ComAp AMF26-P on some earlier builds up to GRW210P)
• ON/OFF selector switch, analogue fuel level and hour meters, internal voltage-adjust potentiometer
• 5 A battery charger (Deep Sea BC2405)
• Adjustable differential (earth leakage) protection with selector switch (ABB RD3M) – ADI
• 4-pole automatic circuit breaker with thermal and magnetic protection, large busbar with bottom cable entry (ETB), door-open breaker trip (SBT) and breaker status contact (ACB)
• Socket section: two-wire remote start/stop, auxiliary power supply plug, multi-pin connector for a transfer switch (LTS)
• Emergency stop button

Standard on every GRW. Choose ACP or MPP.

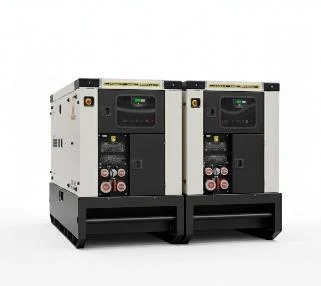

A synchronising panel with a 4-pole motorised circuit breaker for running several GRW sets in parallel – the classic events and rental set-up where load grows through the day. The controller handles synchronising, load sharing and breaker control automatically.

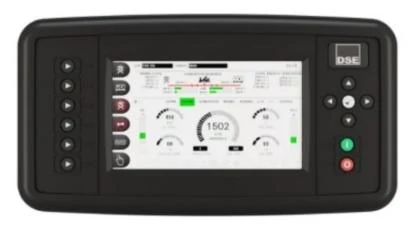

• Controller: Deep Sea DSE8920 (ComAp InteliGen NTC + InteliVision 5 on some earlier builds up to GRW210P)
• 4-pole motorised circuit breaker with thermal and magnetic protection, busbar with bottom cable entry, door-open breaker trip and breaker status
• Multi-pin connector for the parallel signal cable
• Same standard scope as ACP: selector switch, fuel and hour gauges, 5 A battery charger, adjustable differential protection, emergency stop

Available from GRW67P (Alfa Plus) upwards. Choose ACP or MPP.

Traditional analogue gauges on the panel for engine oil pressure and coolant temperature, in addition to the readings on the controller.

• Low oil pressure gauge
• High engine temperature gauge

A two-position selector inside the control panel that switches the set between 400 V 50 Hz and 480 V 60 Hz, for fleets that travel between markets or supply 60 Hz equipment.

• 400 V 3-phase 50 Hz ↔ 480 V 3-phase 60 Hz on ACP and MPP panels
• With a socket panel kit fitted the sockets can only be used at 400/230 V

Other frequency/voltage combinations available as special solutions.

An insulation monitor for unearthed (IT) supplies from a mobile generator. It continuously measures the insulation resistance of the system to earth (0 to 300 V) and alarms before a fault becomes dangerous – required by some hire and event customers and for German-market socket kits.

• Bender ISOMETER IR423-D4-2 or DOLD RN 5897/300, depending on socket kit and stock
• Genset wired as an IT system when IMD is ordered

Replaces the standard adjustable differential protection (ADI). Mandatory with socket kit SPKB6.

A 4G/Ethernet gateway with antenna and built-in GPS that connects the controller to the DSEWebNet cloud, so you can see status, alarms, fuel level and location of every set in the fleet from a phone, tablet or PC and receive email alerts.

• 4G with 2G/3G fallback, any network SIM
• GPS location for asset tracking and geo-fencing
• Connects via USB, RS485, Ethernet or CAN
• Full DSEWebNet access: alarms by email, data logging, reports, iOS/Android app

Not combinable with RGW8, RGW9 or ARM7.

A DIN-rail gateway that puts the generator on an SNMP network management system, sending traps and emails on alarms and status changes and answering SNMP GET/SET requests.

• SNMP V2, automatic MIB generation
• Customisable email / SNMP trap messages, SMTP client
• Browser configuration, status LEDs, one gateway for multiple controllers

Not combinable with RGW2, RGW9 or ARM7.

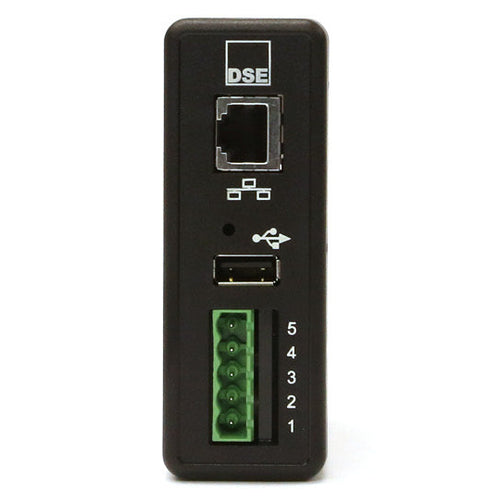

Converts the controller's USB port to Ethernet with a built-in web server, so a single set can be monitored and controlled over a LAN/WAN or integrated into a building management system via MODBUS TCP.

• In-built web server, browser configuration
• MODBUS TCP, viewable from four locations at once
• DIN rail mount

Not combinable with RGW2, RGW8 or ARM7.

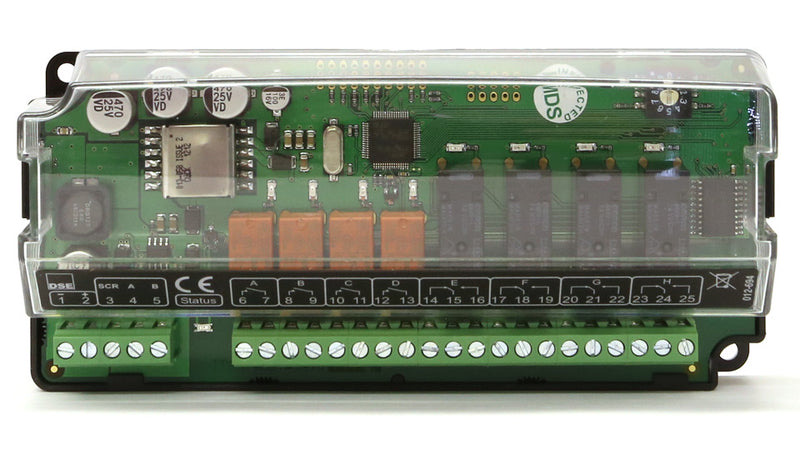

Adds eight configurable relay outputs to the controller for signalling generator status and alarms to external equipment.

• 8 relay contacts with LED indicators: 4 normally open, 4 change-over
• Power on / link lost LED, ID switch
• Terminal strip connections

Not combinable with RGW2, RGW8 or RGW9.

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit A1 gives you: 1 × 400 V CEE 32 A; 1 × 400 V CEE 16 A; 1 × 230 V CEE 16 A; 1 × 230 V Schuko 16 A. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 32 A 3P+N+E IP67
• 1 × 400 V CEE 16 A 3P+N+E IP67 – 3P MCBs curve C with common Type A RCD (ABB RD2)
• 1 × 230 V CEE 16 A 2P+E IP67
• 1 × 230 V Schuko 16 A IP67 – individual 2P 30 mA Type A RCBOs

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit A2 gives you: 1 × 400 V CEE 63 A; 1 × 400 V CEE 32 A; 1 × 400 V CEE 16 A; 1 × 230 V CEE 16 A; 1 × 230 V Schuko 16 A. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 63 A, 1 × 32 A, 1 × 16 A 3P+N+E IP67 – 3P MCBs curve C with common Type A RCD (ABB RD2)
• 1 × 230 V CEE 16 A 2P+E IP67 and 1 × 230 V Schuko 16 A – individual 2P 30 mA Type A RCBOs

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit A3 gives you: 1 × 400 V CEE 32 A; 3 × 230 V CEE 32 A. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 32 A 3P+N+E IP67 – 3P 32 A MCB curve B
• 3 × 230 V CEE 32 A 2P+E IP67 – individual 2P 30 mA Type A RCBOs

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit A4 gives you: 1 × 400 V CEE 63 A; 3 × 230 V CEE 32 A. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 63 A 3P+N+E IP67 – 3P 63 A MCB curve B
• 3 × 230 V CEE 32 A 2P+E IP67 – individual 2P 30 mA Type A RCBOs

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit A5 gives you: 1 × 400 V CEE 32 A; 1 × 400 V CEE 16 A; 2 × 230 V Schuko 16 A. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 32 A and 1 × 16 A 3P+N+E IP67 – individual 3P MCBs curve B with common Type A RCD (ABB RD2)
• 2 × 230 V Schuko 16 A IP67 – individual 2P 30 mA Type A RCBOs

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit A6 gives you: 1 × 400 V CEE 63 A; 1 × 400 V CEE 32 A; 1 × 400 V CEE 16 A; 2 × 230 V Schuko 16 A. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 63 A, 1 × 32 A, 1 × 16 A 3P+N+E IP67 – individual 3P MCBs curve B with common Type A RCD (ABB RD2)
• 2 × 230 V Schuko 16 A IP67 – individual 2P 30 mA Type A RCBOs

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit A7 gives you: 1 × 400 V CEE 63 A; 1 × 400 V CEE 32 A; 1 × 400 V CEE 16 A; 2 × 230 V Schuko 16 A (MCB only, no RCD). For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 63 A, 1 × 32 A, 1 × 16 A 3P+N+E IP67 – individual 3P MCBs curve B
• 2 × 230 V Schuko 16 A IP67 – individual 2P 16 A MCBs curve B

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit A8 gives you: 1 × 400 V CEE 125 A (unprotected); 1 × 400 V CEE 63 A; 1 × 400 V CEE 32 A; 1 × 400 V CEE 16 A; 1 × 230 V CEE 16 A; 1 × 230 V Schuko 16 A. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 125 A 3P+N+E IP67 with no dedicated protection (under the genset breaker)
• 1 × 400 V CEE 63 A, 1 × 32 A, 1 × 16 A 3P+N+E IP67 – individual 3P MCBs curve B with common Type A RCD (ABB RD2)
• 1 × 230 V CEE 16 A and 1 × 230 V Schuko 16 A – individual 2P 30 mA Type A RCBOs

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit A9 gives you: 1 × 400 V CEE 125 A; 1 × 400 V CEE 63 A; 3 × 230 V CEE 32 A. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 125 A and 1 × 63 A 3P+N+E IP67 – individual 3P MCBs curve B
• 3 × 230 V CEE 32 A 2P+E IP67 – individual 32 A 30 mA Type A RCBOs

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit A10 gives you: 1 × 400 V CEE 125 A (unprotected); 1 × 400 V CEE 63 A; 1 × 400 V CEE 32 A; 1 × 400 V CEE 16 A; 2 × 230 V Schuko IP68. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 125 A 3P+N+E IP67 with no dedicated protection
• 1 × 400 V CEE 63 A, 1 × 32 A, 1 × 16 A 3P+N+E IP67 – individual 3P MCBs curve B with common Type A RCD (ABB RD2)
• 2 × 230 V Schuko IP68 – individual 2P 30 mA Type A RCBOs

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit A11 gives you: 1 × 400 V CEE 125 A (unprotected); 1 × 400 V CEE 63 A; 1 × 400 V CEE 32 A; 1 × 230 V CEE 16 A; 2 × 230 V Schuko IP68 – IT earthing system. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 125 A 3P+N+E IP67 with no dedicated protection
• 1 × 400 V CEE 63 A and 1 × 32 A 3P+N+E IP67 – individual 3P MCBs curve B
• 1 × 230 V CEE 16 A 1P+N+E IP67 and 2 × 230 V Schuko IP68 – individual 2P 16 A MCBs curve B
• Wired for an IT earthing system

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit A12 gives you: 2 × 32 A 500 V 4-pin Clipsal-type industrial outlets; 3 × 15 A 250 V single-phase outlets. For 400 V three-phase 50 Hz sets.

• 2 × 32 A 500 V 4-pin IP66 industrial (Clipsal or equivalent) outlets – individual 3P 32 A MCBs curve B with common Type A RCD (ABB RD2)
• 3 × 15 A 250 V single-phase IP66 auto-switched outlets – 2P 30 mA Type A RCBOs
• Australian-style outlet kit

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit A13 gives you: 3 × 32 A 500 V 4-pin Clipsal-type industrial outlets; 3 × 15 A 250 V single-phase outlets. For 400 V three-phase 50 Hz sets.

• 3 × 32 A 500 V 4-pin IP66 industrial (Clipsal or equivalent) outlets – individual 3P 32 A MCBs curve B with common Type A RCD (ABB RD2)
• 3 × 15 A 250 V single-phase IP66 auto-switched outlets – 2P 30 mA Type A RCBOs
• Australian-style outlet kit

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit B1 gives you: 1 × 400 V CEE 125 A; 1 × 400 V CEE 63 A; 1 × 400 V CEE 32 A; 1 × 400 V CEE 16 A; 1 × 230 V CEE 16 A; 1 × 230 V Schuko 16 A. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 125 A, 63 A, 32 A and 16 A 3P+N+E IP67 – individual 3P MCBs with common Type A RCD (ABB RD2)
• 1 × 230 V CEE 16 A 2P+E IP67 and 1 × 230 V Schuko 16 A – individual 2P 30 mA Type A RCBOs

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit B2 gives you: 1 × 400 V CEE 125 A; 1 × 400 V CEE 63 A; 3 × 230 V CEE 32 A. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 125 A and 1 × 63 A 3P+N+E IP67 – individual 3P MCBs
• 3 × 230 V CEE 32 A 2P+E IP67 – 3 individual 1P+N 16 A 30 mA Type A RCBOs

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit B3 gives you: 1 × 400 V 125 A; 1 × 400 V 63 A; 1 × 400 V 32 A; 1 × 400 V 16 A; 2 × 230 V Schuko 16 A. For 400 V three-phase 50 Hz sets.

• 1 × 400 V 125 A, 63 A, 32 A and 16 A 3P+N+E IP67 – individual 3P MCBs with common Type A RCD (ABB RD2)
• 2 × 230 V Schuko 16 A 2P+E IP67 – 2 individual 2P 16 A 30 mA Type A RCBOs

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit B5 gives you: 3 × 32 A 500 V 5-pin 3-pole Clipsal-type industrial outlets; 3 × 15 A 250 V 3-pin single-pole outlets. For 400 V three-phase 50 Hz sets.

• 3 × 32 A 500 V 5-pin 3-pole IP66 industrial (Clipsal or equivalent) outlets – individual 3P 32 A MCBs with common Type A RCD (ABB RD2)
• 3 × 15 A 250 V 3-pin IP66 auto-switched outlets – 3 individual 2P 16 A 30 mA Type A RCBOs
• Australian-style outlet kit

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit B6 gives you: 1 × 400 V CEE 125 A; 1 × 400 V CEE 63 A; 1 × 400 V CEE 32 A; 1 × 400 V CEE 16 A; 1 × 230 V Schuko 16 A IP68 – German Type B RCD spec. For 400 V three-phase 50 Hz sets.

• Each socket with its own Type B 30 mA RCD (63 A socket with 500 mA RCD; 125 A socket under the genset breaker, no RCD)
• Individual 3P MCBs 63 A / 32 A / 16 A curve B; 1 × 2P 16 A 30 mA Type A RCBO for the Schuko
• IT connection – must be ordered with IMD
• Includes 'Stromerzeuger Typ B' sticker above the control panel

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit B7 gives you: 1 × 400 V CEE 63 A with pilot contact; 1 × 400 V CEE 32 A; 1 × 400 V CEE 16 A; 1 × 230 V CEE 16 A; 1 × 230 V Schuko 16 A. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 63 A 3P+N+E IP67 with pilot contact (its MCB opens when the plug is removed)
• 1 × 400 V CEE 32 A and 1 × 16 A 3P+N+E IP67 – individual 4P MCBs with common Type A RCD (ABB RD2)
• 1 × 230 V CEE 16 A and 1 × 230 V Schuko 16 A – 2 individual 2P 16 A 30 mA Type A RCBOs

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit B9 gives you: 1 × 400 V 125 A; 1 × 400 V 63 A; 1 × 400 V 32 A; 230 V Schuko 16 A – IT system with DOLD isometer. For 400 V three-phase 50 Hz sets.

• 1 × 400 V 125 A, 63 A and 32 A 3P+N+E IP67 – individual 4P MCBs curve C
• 230 V Schuko 16 A 2P+E IP67 – 2P 16 A MCB curve C
• IT system with DOLD RN 5897/300 isometer

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit B10 gives you: 1 × 32 A 500 V 5-pin Clipsal-type outlet with switch; 1 × 400 V CEE 63 A; 1 × 15 A 250 V single-phase outlet with switch. For 400 V three-phase 50 Hz sets.

• 1 × 32 A 500 V 5-pin 3-pole IP66 industrial (Clipsal or equivalent) outlet with individual switch
• 1 × 400 V CEE 63 A 3P+N+E IP67 – individual 3P MCBs with common Type A RCD (ABB RD2)
• 1 × 15 A 250 V 3-pin IP66 auto-switched outlet with individual switch – 2P 16 A 30 mA Type A RCBO
• Australian-style outlet kit

Only one socket panel kit can be fitted per set. Includes an Australian 240 V 15 A in-line plug for the auxiliary (battery charger) supply.

A factory-fitted socket outlet panel on the control panel's socket section, with each outlet individually protected. Kit B11 gives you: 1 × 400 V CEE 125 A; 1 × 400 V CEE 63 A; 1 × 400 V CEE 32 A; 1 × 400 V CEE 16 A; 1 × 250 V Schuko 16 A; IT / TN-S selector switch. For 400 V three-phase 50 Hz sets.

• 1 × 400 V CEE 125 A (no RCD), 63 A (63 A Type B 300 mA RCD), 32 A and 16 A (individual Type B 30 mA RCDs) 3P+N+E IP67 – individual 4P MCBs curve B
• 1 × 250 V Schuko 16 A IP68 – 2P 16 A 30 mA Type A RCBO
• 1 × auxiliary input socket 230 V
• Manual selector switch for IT / TN-S systems with LED indication

Only one socket panel kit can be fitted per set. Every kit includes a CEE 230 V 16 A plug for the auxiliary power supply (battery charger).

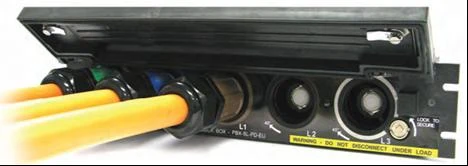

A five-way Power Lock connector box (L1, L2, L3, N, earth) for connecting high-current power cables quickly and safely without opening the busbar compartment – the standard connection for events and temporary power. All ports are keyed and colour-coded so cables cannot be connected to the wrong line.

• 5 × 400 A Power Lock panel connectors (ref. PBX-SL-PS-EU-400): L1, L2, L3, neutral, earth
• 400 A at all voltages, directly protected by the generator's main circuit breaker
• Sequential connection – earth connects first
• Keyed and colour-coded to European 3-phase standards, finger-protected, lockable, IP65 sealed ports

Not combinable with PWL2. Alfa Plus size and above.

The higher-capacity Power Lock connector box for the largest GRW sets, with five 660 A keyed and colour-coded connectors (L1, L2, L3, N, earth) protected directly by the main circuit breaker.

• 5 × 660 A Power Lock panel connectors (ref. PBX-SL-PS-EU-660): L1, L2, L3, neutral, earth
• 600 A rating at all voltages, sequential earth-first connection
• Keyed, colour-coded, finger-protected, lockable, IP65 sealed ports

Not combinable with PWL1. Epsilon and Zeta sizes only.

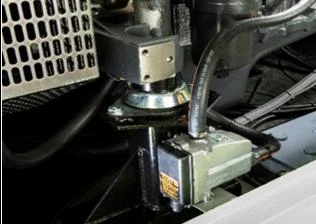

An engine coolant heater that keeps the engine warm while the set is idle so it starts quickly and takes load promptly in cold weather. Recommended wherever the ambient temperature can drop below 3 °C.

• Yanmar (Alfa): 400 W immersion heater
• Perkins 1104D (Alfa Plus, Beta): 600 W immersion heater
• Perkins 1106D and Volvo (Beta Plus, Epsilon, Zeta): 1500 W external heater with thermostat

A Parker Racor water-separating fuel filter fitted ahead of the engine's own filters. It strips water, dirt, rust, algae and varnish out of the fuel before it reaches the injection system – strongly recommended for hire sets that run on fuel of unknown quality.

• Parker Racor 500FG10 on Yanmar, Perkins 1104D and Volvo engines
• Parker Racor 1000FH10 on Perkins 1106D engines (Beta Plus)
• Protects against dirt, rust, algae, asphaltenes, varnish and water

A larger heavy-duty air cleaner that lets the set work in dusty environments – construction sites, mines, quarries – while stretching out the filter service intervals.

• Donaldson D080069 (Alfa), D090073 (Alfa Plus, Beta), D100384 (Beta Plus), D140078 (Zeta)
• Epsilon (Volvo TAD135x) already has a Donaldson D10012x heavy-duty filter as standard

Not combinable with ASV on Volvo engines.

Quick-release fuel couplings on the base frame, outside the enclosure, connected to the six-way fuel valve that is standard on every GRW. Hook up an external tank in seconds to extend running time for long events or continuous site work.

• Inlet: male ½" Serie 595 ISO 7241/A; outlet: female ½" Serie 595 ISO 7241/A
• Maximum working pressure 250 bar, flow 43 L/min
• Mounted on the base frame, outside the enclosure

Not combinable with QFC1. Cannot be connected to the AFP pump.

The same quick-release couplings as QFC, but mounted inside the enclosure behind a door so they are protected from damage and tampering.

• Inlet: male ½" Serie 595 ISO 7241/A; outlet: female ½" Serie 595 ISO 7241/A
• Maximum working pressure 250 bar, flow 43 L/min
• Located inside the enclosure, protected by the genset door

Not combinable with QFC.

Two fuel transfer pumps – one electric, controlled automatically, and one manual backup – for filling the generator's built-in tank from an external bulk tank.

• Piusi BP3000 (Perkins sets): 12 V DC, 50 L/min, 300 W, 2900 rpm, 1.5 bar, 30 min duty cycle
• Piusi Panther (Volvo sets): 24/12 V DC, 70/35 L/min, 420/150 W, 3600/1800 rpm, 1.5 bar
• Manual fuel pump included; fuel pipes to the external tank not supplied

Not available on Yanmar (Alfa) sets. Cannot be combined with QFC.

A manual pump for emptying any liquid that has collected in the leak-proof tray of the base frame. A selector switch lets the same pump drain the engine oil, so it doubles as the oil drain pump at service time.

• Manual pump for the base frame leak-proof tray
• Switchable to engine oil draining

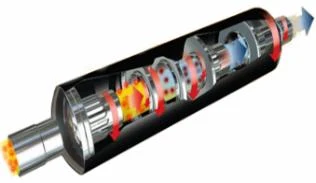

An ATEX-certified spark arrestor on the exhaust outlet that traps hot carbon particles and stops flammable debris being ejected – a mandatory safety item on mine sites, oil and gas, petrochemical, timber and agricultural sites where combustible material, gases or dust may be present.

• Indemar WT2L150SS (Yanmar), WT2L175SS (Perkins), Bastelli PAE171 (Volvo)
• ATEX certified; allows operation in ATEX zones
• Genset noise level may vary by ±4 dB(A) with ESA fitted

An automatic air intake shut-off valve that stops a runaway diesel. If flammable vapour is drawn into the intake the engine can overspeed uncontrollably; the spring-actuated valve blocks the intake completely, starving the engine of both air and the uncontrolled fuel source. Specified for oil and gas, petrochemical and mining sites.

• Chalwyn SVX series valve (SVX501 on Volvo engines)
• Emergency overspeed protection for hazardous areas

Not combinable with HDF on Volvo engines.

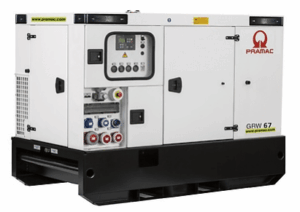

An additional roof module with internal soundproofing partitions that cuts the noise from the air outlet by up to 5 dB(A) compared with the standard canopy. The choice for events, concerts, sports and any work in residential areas. Models are designated with an SS suffix, e.g. GRW67P SS.

• Noise reduction up to −5 dB(A) versus the standard enclosure

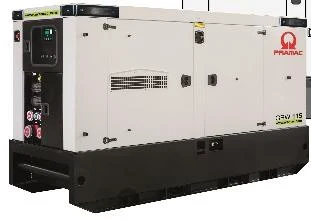

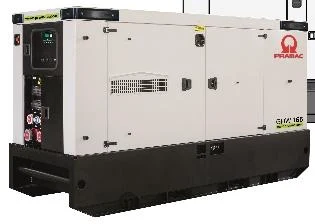

• Overall height: Alfa 2150 mm, Alfa Plus 2230 mm, Beta 2542 mm, Beta Plus 2670 mm (length and width unchanged)

Available on Alfa, Alfa Plus, Beta and Beta Plus sizes (GRW22Y to GRW210P).

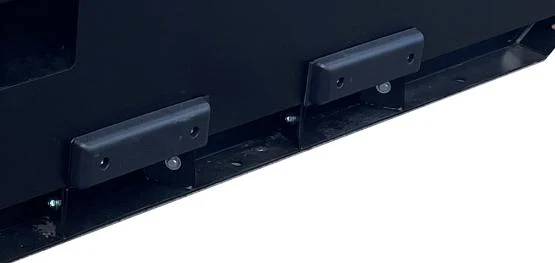

Rubber bumpers on the base frame that reduce the risk of damage during forklift handling and transport – a worthwhile addition for hire fleets that move every week.

• Bumpers at each forklift pocket opening
• Bumpers on each short-side corner

Two galvanised steel slides with the same footprint as the base frame, bolted underneath to raise the set off the ground. They protect the base frame and forklift pocket profiles when the set is dragged across a construction site over debris, rebar and rough ground.

• Two galvanised slides screwed to the standard base frame
• Same shape and footprint as the base frame
• Drawings available for Alfa / Alfa Plus and Beta / Beta Plus sizes

A two-pole battery isolator that disconnects both battery poles for complete isolation of the starting battery during transport, storage and maintenance.

• Two-pole battery switch for complete battery disconnection

Option currently under development – availability to be confirmed at order.

Configures the set for Australian standards: cables colour-marked to AS/NZS 3000, a MEN link between the main earth bar and the main neutral bar, and a bracket provision on the enclosure for a fire extinguisher.

• Cable colour marking to AS/NZS 3000
• MEN link between main earth terminal bar and main neutral conductor bar
• Enclosure provision for a fire extinguisher bracket (extinguisher supplied and fitted locally)

Ozwide Power specifies JAUS on GRW sets supplied for Australia.
