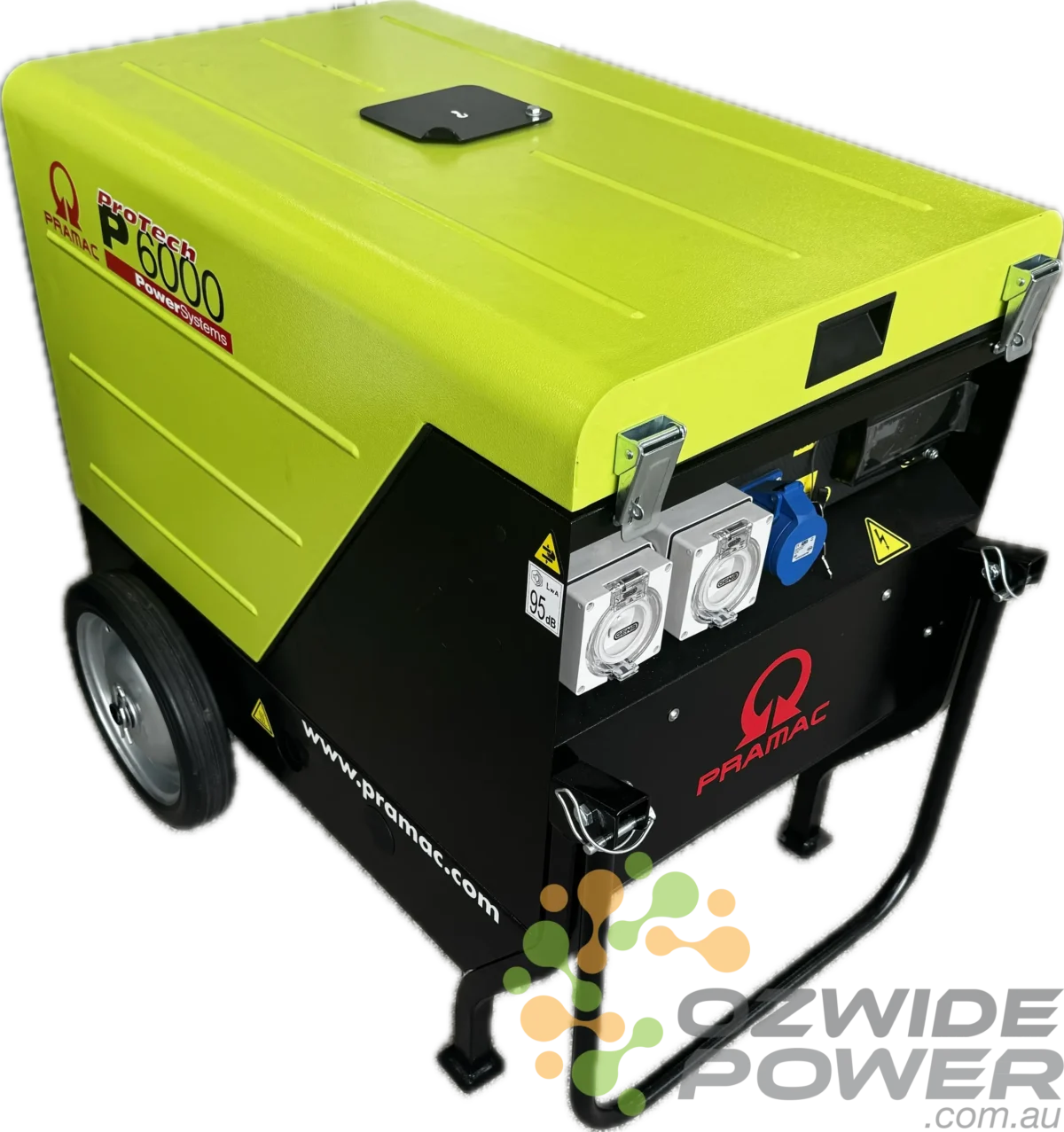

P6000 5.9kVA Single Phase Diesel Generator

Description

Pramac P6000 – 5.9 kVA Single Phase Diesel Generator

The silent power. Yanmar diesel, AVR, 16 hours on a tank.

The P6000 diesel generator delivers 5.9 kVA / 5.3 kW limited-time standby power and 4.8 kVA / 4.3 kW continuously at 230 V, 50 Hz single phase, 0.9 power factor. It runs an air cooled Yanmar L100N Electric engine, 435 cm³, naturally aspirated with mechanical governor at 3000 RPM and electric start, paired with a brush type class H alternator, IP23 protected, two pole, with AVR 520 electronic voltage regulation held inside 2%.

The 24 litre tank runs 16.44 hours at 75% load and 12.37 hours at 100%, using 1.46 litres per hour at 75%, and noise sits at 65 dB(A) at 7 metres with a guaranteed sound power level of 93 dB(A), low enough for residential areas or work outside normal hours. At 186 kg dry and 990 x 602 x 826 mm it stays compact for its output.

The CONN DPP control panel carries a keyed off/on/start selector, a connector for the optional AMF or RSS accessories, digital voltmeter, hours counter and frequency meter, with a circuit breaker, differential protection (DPP) and Oil Guard low oil shutdown. Outlets are one SCHUKO 230 V 16 A IP54 socket, one 2P+T CEE 230 V 16 A IP44 socket and one 2P+T CEE 230 V 32 A IP44 socket. A transportation kit with folding handles, the AMF automatic mains failure panel, the RSS wireless remote start/stop and a 40 A manual transfer switch are available as accessories.

P6000 at a glance

• 5.9 kVA / 5.3 kW standby (LTP), 4.8 kVA / 4.3 kW continuous (COP)
• Yanmar L100N Electric, 435 cm³, air cooled, naturally aspirated, 3000 RPM, electric start
• Class H brush type alternator, IP23, 2 pole, AVR 520 electronic regulation inside 2%
• 230 V, 50 Hz, single phase, 0.9 power factor
• 24 L fuel tank, 1.46 L/h at 75% load, 1.94 L/h at 100% load
• Runtime 16.44 h at 75% load, 12.37 h at 100% load
• Noise: 65 dB(A) @ 7 m, guaranteed LWA 93 dB(A)
• CONN DPP panel: keyed selector, AMF/RSS connector, voltmeter, hours counter, frequency meter, circuit breaker, DPP, Oil Guard
• Outlets: 1 x SCHUKO 230 V 16 A IP54, 1 x CEE 230 V 16 A IP44, 1 x CEE 230 V 32 A IP44
• Dimensions 990 x 602 x 826 mm, dry weight 186 kg, oil capacity 1.6 L

P Series – Compact Generators

Reliable Mobile and Backup Power

The P Series range delivers dependable power in a compact, rugged design built for both mobile and standby applications. Available in diesel and petrol configurations from 4 to 18 kVA, these generators are engineered to perform in demanding environments while remaining easy to transport, operate and maintain.

Designed with a focus on durability and user convenience, the P Series incorporates air and water cooled engines running at 3000 RPM, delivering strong performance across residential sites, commercial operations and construction environments. Its efficient acoustic insulation keeps noise levels low, making it ideal for locations where quiet operation is essential.

A reinforced baseframe with fork pockets and a single lifting point supports safe, effortless handling. Service access is simplified with side doors and an opening roof, reducing downtime during maintenance. Optional upgrades such as AMF panels, remote start, lockable fuel caps, site trailers and enhanced electrical protections make it adaptable to a variety of operational requirements.

Frequently Asked Questions

How can the P Series generator be moved and handled?

The P Series is easy to transport, thanks to the forkable baseframe and the single lifting point. The side door and opening roof allow for easy and fast servicing.

What optionals are available for the P Series?

AMF is available as an optional extra. This accessory allows control of all the generator functions and transfers the load to the generator in the event of a mains failure; as soon as the AMF system detects the power grid again, it stops the generator. Also available as optional extras: lockable fuel cap, site trailer, remote start/stop device, differential or isometer protection.

Which are the most suitable applications for the P Series?

The robust and compact design makes the P Series the number one choice as an entry level generator for mobile applications. Thanks to the sturdy design and low noise, they are the perfect generators for larger work sites and residential areas where a low noise level is a priority.

How long will the P6000 run on a full tank?

The 24 litre tank gives 16.44 hours at 75% load, or 12.37 hours at 100% load, using 1.46 litres per hour at 75%.

Is an automatic transfer switch (ATS) included?

No. An automatic transfer switch is not included unless it is listed in the product description above. Ozwide Power can supply a correctly rated ATS with the generator, so ask for a package price when you enquire.
