GPW85P 90.9kVA Mobile Diesel Generator

Description

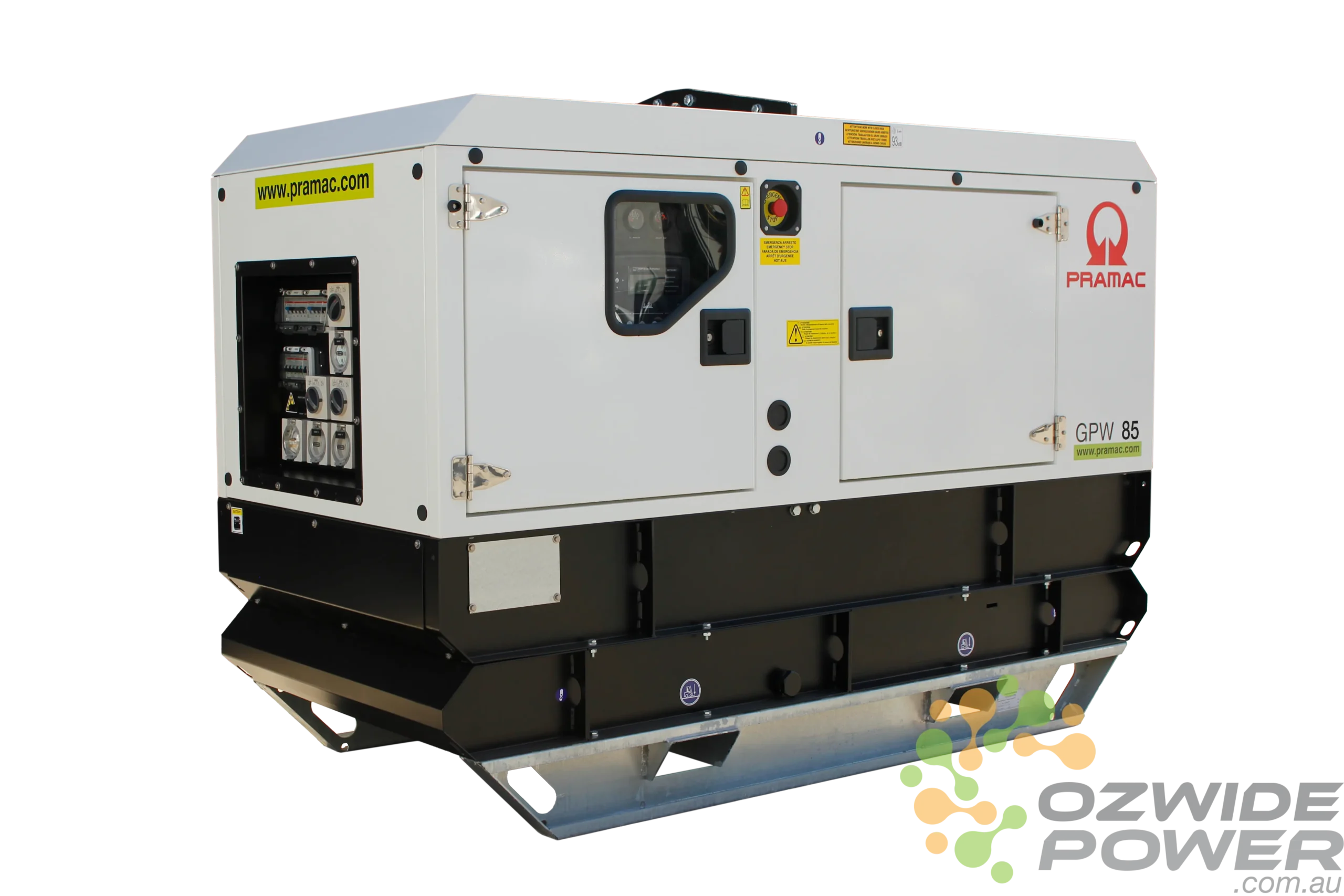

Pramac GPW85P – 90.9 kVA Mobile Diesel Generator

Perkins turbo power. Mecc Alte output. Built to move.

The GPW85P diesel generator delivers 90.9 kVA / 72.7 kW emergency standby and 82.3 kVA / 65.8 kW prime power from a Perkins 1104D-E44TAG1, a four cylinder, 4.4 litre, turbocharged, water-cooled Stage IIIA engine running at 1500 RPM with electronic governor. Output is delivered through a brushless Mecc Alte ECP32-2L4 C alternator in series star at 400/230 V, 50 Hz, three phase, 0.8 power factor, with class H insulation, IP23 protection, 90% efficiency at full load and voltage regulation held inside 1%. Nominal current is 119 A behind a 125 A circuit breaker.

The canopy version is a weatherproof galvanised sheet metal enclosure with residential silencer and high quality soundproofing, giving 68 dB(A) at 7 metres and a guaranteed sound power level of 97 dB(A). Large lockable lateral doors open the unit up for service, and the welded steel baseframe carries anti-vibration mountings, screwed support legs, a crane handling hole and a single-point lifting bridge on the roof. The canopy measures 2757 x 1120 x 1846 mm and weighs 1446 kg. A Canopy Extra Silent version with additional soundproofing modules is available at 64 dB(A) at 7 metres, measuring 2757 x 1120 x 2438 mm and 1631 kg.

GPW85P at a glance

• 90.9 kVA / 72.7 kW emergency standby, 82.3 kVA / 65.8 kW prime power
• Perkins 1104D-E44TAG1, 4 cylinder in line, 4400 cm³, turbocharged, water cooled, Stage IIIA, 1500 RPM, electronic governor
• Mecc Alte ECP32-2L4 C brushless alternator, 90% efficiency at full load, 4 pole, class H, IP23
• 400/230 V, 50 Hz, three phase, 0.8 power factor
• Nominal current 119 A, maximum 131 A, 125 A circuit breaker
• Fuel consumption 16.72 L/h at 75% PRP, 20.38 L/h at 100% PRP
• Fuel tank options: 8PFT 350 L or MFT-S 350 L internal, MFT-M 500 L sub-base
• Runtime at 75% PRP: 20.93 h (8PFT or MFT-S), 29.90 h (MFT-M)
• Noise: 68 dB(A) @ 7 m, 79 dB(A) @ 1 m, guaranteed LWA 97 dB(A)
• Control panel: MRS manual remote start, ACP automatic mains failure or MPP modular parallel, specify when ordering
• 12 V electric start, 8 L oil capacity, 17 L coolant capacity

Optional equipment includes a front-mounted sockets panel with quick cable connection, pre-heating (PHS), air shut-off valve (ASV), heavy-duty air filter (HDF), water separator filter (WSP), exhaust spark arrestor (ESA), alternator winding total protection (WTP), anti-condensation heater (ACH) and a galvanised skid base with fork lift points (GSB).

EC mark compliant to 2006/42/CE, 2014/30/UE, 2014/35/UE, 2000/14/EC and 97/68/EC, built to EN 12100, EN 13857 and EN 60204 under ISO 9001, with G2 class load acceptance to ISO 8528-5:2013.

GPW Series – Mobile Diesel Generators

Modular. Mobile. Made for Professionals.

The GPW Series is a family of mobile diesel generators engineered for high-demand applications across construction, industrial operations, rental fleets and large events. Built on a modular and scalable platform, the GPW range allows each unit to be tailored precisely to the job, ensuring the right level of performance without unnecessary cost or complexity.

Designed for professional use, every GPW unit offers strong electrical performance, robust structural integrity and practical usability. The modular architecture supports a wide combination of mechanical and electrical configurations, making the range adaptable to different site conditions and operational requirements. Its streamlined layout, wide service doors and strong protective features ensure safe operation and fast maintenance in challenging environments.

Key Features

• Engine options: Perkins and Yanmar, paired with Mecc Alte brushless alternators
• Canopy and Extra Silent enclosure versions, zinc-plated and weatherproof
• Segregated control and power sections with MRS manual remote start or ACP automatic control panels
• Plastic or metal fuel tanks, internal or sub-base, for 8 to 60+ hours of autonomy
• Single-point lifting bridge, forklift access and optional galvanised skid base
• Hot parts protection, rain flaps, wide access doors and modular trays

Whether supporting critical operations, temporary site power or rental applications, the GPW Series is built to keep the work moving.

Frequently Asked Questions

Which control panel comes with a GPW generator?

GPW sets are supplied with either the MRS manual remote start panel, which adds an automatic mains failure start function, three phase mains measurement and a 50 event log, or the ACP automatic control panel with full AMF operation, detailed event and performance logging and optional remote control and I/O expansion modules. Specify the panel when ordering.

What enclosure versions are available?

Every GPW model is available as a standard canopy with residential silencer and galvanised weatherproof sheet metal, or as a Canopy Extra Silent version with additional soundproofing modules for city centre and noise-restricted sites.

How long will the GPW85P run on a full tank?

At 75% prime power it runs 20.93 hours on the 350 litre 8PFT internal tank, 20.93 hours on the 350 litre MFT-S internal tank and 29.90 hours on the 500 litre MFT-M sub-base tank. Fuel consumption is 16.72 litres per hour at 75% load and 20.38 litres per hour at 100% load.

Is an automatic transfer switch (ATS) included?

No. An automatic transfer switch is not included unless it is listed in the product description above. Ozwide Power can supply a correctly rated ATS with the generator, so ask for a package price when you enquire.
