GRW67P 66kVA Rental Diesel Generator

Description

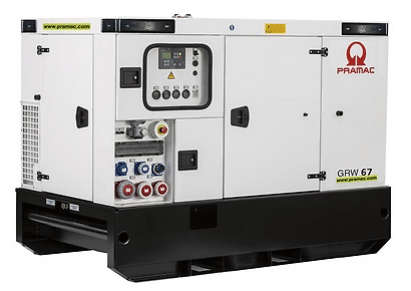

Pramac GRW67P – 66 kVA Rental Diesel Generator

Perkins turbo power. Leroy Somer output. 500 litre tank. Rental tough.

The GRW67P rental generator delivers 66 kVA / 52.8 kW standby and 60 kVA / 48 kW prime power from a Perkins 1104D-44TG2, a four cylinder, 4.4 litre, turbocharged, water-cooled Stage IIIA engine running at 1500 RPM with electronic governor. Output is delivered through a brushless Leroy Somer LSA 42.3 L9 alternator at 400/231 V, 50 Hz, three phase, 0.8 power factor, with class H insulation, IP23 protection, Protection System 2 winding treatment, AREP excitation, R438 electronic voltage regulation held inside 0.5% and a permanently greased single bearing rated for 20,000 hours. Nominal current is 87 A and maximum current 95 A. The set is 50/60 Hz switchable, and with the VSS voltage selector switch can run at 230 V three phase or 230 V single phase (40 kVA standby).

The canopy is built from modular panels of zinced metal sheet tested to more than 1000 hours of salt spray, with gasketed access doors and lockable handles on each side, washable fireproof soundproofing and an integrated residential exhaust silencer with rain flap, giving 61 dB(A) at 7 metres and a guaranteed sound power level of 90 dB(A). The heavy-duty powder coated base frame is fully bunded to retain 110% of the set fluids and carries integrated fork pockets, a pull bar and a single lifting point with rung and handle on both sides. The unit measures 3460 x 1200 x 1950 mm and weighs 2250 kg. The canopy is painted RAL 9016 with supersilent soundproofing rated at a maximum of 75 dB(A) at 1 metre.

The integrated 500 litre metal fuel tank runs 43.10 hours at 75% prime power and 32.09 hours at full load, with a refilling point on each side and a six way fuel valve for connection to an external tank. The unit in stock is supplied with the ACP automatic control panel with ComAp AMF26 controller with auto mains failure function, digital metering of generator voltage, current, frequency, power and power factor, mains voltage, hours, battery voltage, engine speed, fuel level, engine temperature and oil pressure, four operating modes, RS232 port, 5 A battery charger, differential protection with internal switch and a socket section with 3P+N+T 125 A, 63 A, 32 A and 16 A outlets, a 2P+T 230 V 16 A outlet and a SCHUKO outlet, each with its own circuit breaker.

GRW67P at a glance

• 66 kVA / 52.8 kW standby, 60 kVA / 48 kW prime power
• Perkins 1104D-44TG2, 4 cylinder in line, 4400 cm³, turbocharged, water cooled, Stage IIIA, 1500 RPM, electronic governor, 50/60 Hz switchable
• Leroy Somer LSA 42.3 L9 brushless alternator, 4 pole, 12 leads, class H, IP23, R438 AVR inside 0.5%
• 400/231 V, 50 Hz, three phase, 0.8 power factor, nominal current 87 A, maximum 95 A
• Fuel consumption 11.60 L/h at 75% PRP, 15.58 L/h at 100% PRP
• 500 L integrated metal fuel tank, runtime 43.10 h at 75% PRP, 32.09 h at 100% PRP
• Noise: 61 dB(A) @ 7 m, 72 dB(A) @ 1 m, guaranteed LWA 90 dB(A)
• ACP automatic control panel with ComAp AMF26 controller, LTS connector and socket section
• 12 V electric start, 8 L oil capacity, 16.5 L coolant capacity
• Canopy 3460 x 1200 x 1950 mm, 2250 kg dry

Options include dual frequency switch (DFS), voltage selector switches (VSS1 to VSS4), remote control via GPRS or internet bridge (RCG), free voltage contact modules (TLP), type B differential protection (ADI-B), insulation monitoring device (IMD), customised socket section (SPKS), pre-heating (PHS), quick fit fuel connectors (QFC), water separator filter (WSP), heavy-duty air filter (HDF), hot parts protection (HPP), ATEX exhaust spark arrestor (ESA), air shut-off valve (ASV), baseframe bumpers (BFB) and galvanised sliding skid (GGS). Road trailer, road trailer with adjustable drawbar, site trailer and a load transfer switch are available as accessories.

Ratings to ISO 8528-1:2005 with engine performance to ISO 8528/1, ISO 3046/1:1986 and BS 5514/1. Alternator to IEC 60034, NEMA MG 1.32-33, ISO 8528-3, CSA C22.2 and UL 1146.

GRW Series – Rental Diesel Generators

Low Noise. Heavy-Duty Build. Engineered for Long-Duration Performance.

The GRW Series is a robust family of rental-grade diesel generators developed for sites that require low noise, extended running autonomy and dependable performance in all conditions. Purpose-built for rental fleets, construction, utilities, mining, events and mission-critical environments, the GRW range delivers reliable three phase power across a broad output spectrum.

With corrosion-resistant zinced steel canopies tested to 1000 hours of salt spray and fully bunded heavy-duty baseframes that retain 110% of all fluids, every GRW generator is engineered to withstand aggressive environments, harsh weather and long operating cycles. Large integrated fuel tanks with a refilling point on each side deliver long uninterrupted running, and a six way fuel valve allows connection to an external tank for even longer autonomy.

Key Features

• Perkins and Volvo engine options with Leroy Somer brushless alternators
• Dual frequency 50/60 Hz capability with optional voltage selector switches
• Standard and Extra Silent acoustic canopies with integrated residential silencer and rain flap
• Fully bunded base frame with integrated fork pockets and pull bar
• Single lifting point, battery isolator (MBS), earth rod, document holder and lube oil drain pump as standard
• ACP automatic or MPP modular parallel control panels, with site and road trailer options

Frequently Asked Questions

What is included as standard on a GRW rental generator?

Every GRW set ships with a heavy-duty powder coated base frame bunded to 110% of its fluids, fork pockets and a pull bar, a single lifting point with rung and handle, a battery isolator (MBS), an earth rod with cable, a document holder, a lube oil drain pump, a six way fuel valve for external tank use, double fuel refilling points and a leak proof tray with detector sensor.

Can it be trailer mounted?

Yes. A site trailer (STR), road trailer (RTR) and road trailer with height adjustable drawbar (RTR-B) are available as accessories, along with a load transfer switch (LTS) for the ACP panel.

How long will the GRW67P run on a full tank?

The 500 litre integrated tank gives 43.10 hours at 75% prime power or 32.09 hours at full load, using 11.60 and 15.58 litres per hour respectively. The six way fuel valve allows an external tank to be connected for longer runs.

Is an automatic transfer switch (ATS) included?

No. An automatic transfer switch is not included unless it is listed in the product description above. Ozwide Power can supply a correctly rated ATS with the generator, so ask for a package price when you enquire.
