S8000 7.2kVA Single Phase Petrol Generator

Description

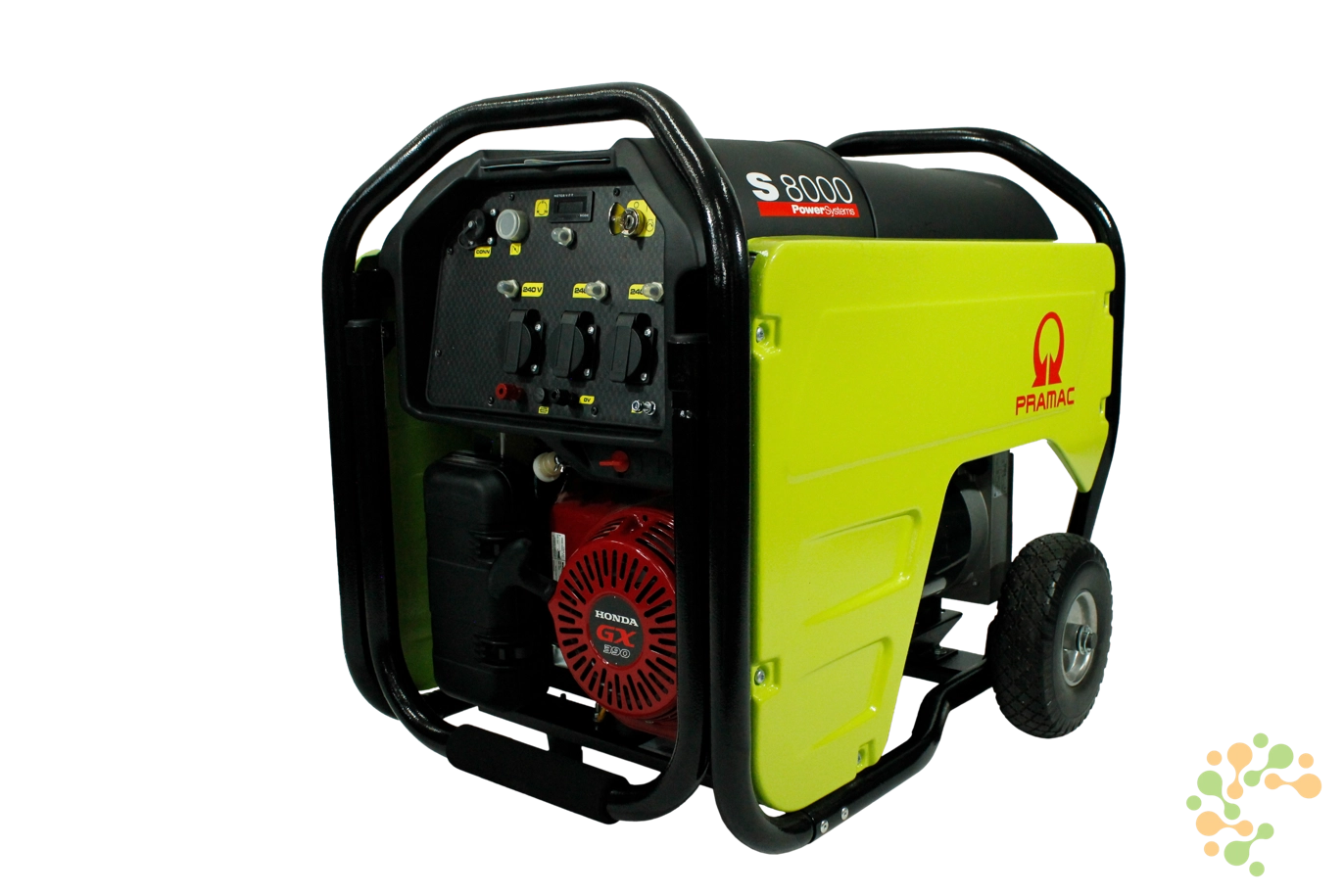

Pramac S8000 – 7.2 kVA Single Phase Petrol Generator

The complete petrol package. Honda GX390, electric start, 27 litre tank.

The S8000 petrol generator delivers 7.2 kVA / 6.4 kW emergency standby and 6 kVA / 5.5 kW continuous power at 230 V, 50 Hz single phase, 0.9 power factor, from a Honda GX390 engine with electric start and recoil backup. The 389 cm³ air cooled engine runs at 3000 RPM with mechanical governor and a 1.1 litre oil capacity, driving a brush type class H, IP23, two pole alternator with AVR 520 electronic voltage regulation held inside 2%.

The 27 litre tank runs 12.50 hours at 75% load and 9.41 hours at 100%, using 2.16 litres per hour at 75%, with an analogue fuel gauge, bayonet filler cap, cup shaped pre-filter, fuel tap on the front panel and an in-line fuel filter. Noise is 69 dB(A) at 7 metres with a guaranteed sound power level of 97 dB(A). At 109 kg dry and 840 x 615 x 753 mm it rolls on two solid rubber wheels with a non-slip folding handle and two lifting points on the frame.

The tubular steel roll bar frame carries removable side covers, anti-vibration mounts, an incorporated starter battery, a muffler with spark arrestor and a quick instruction leaflet on the front panel for rental use. The CONN control panel carries a keyed off/on/start selector, pushbutton choke, a connector for the optional AMF or RSS accessories, a thermal circuit breaker, Oil Guard, a 10 A fuse and a 12 V DC battery charger output. Outlets are three AS/NZS 3112 15 A 250 V sockets.

S8000 at a glance

• 7.2 kVA / 6.4 kW emergency standby, 6 kVA / 5.5 kW continuous
• Honda GX390 Electric, 389 cm³, air cooled, 3000 RPM, electric start with recoil backup, 1.1 L oil capacity
• Class H brush type alternator, IP23, 2 pole, AVR 520 electronic regulation inside 2%
• 230 V, 50 Hz, single phase, 0.9 power factor
• 27 L fuel tank with gauge, 2.16 L/h at 75% load, 2.87 L/h at 100% load
• Runtime 12.50 h at 75% load, 9.41 h at 100% load
• Noise: 69 dB(A) @ 7 m, guaranteed LWA 97 dB(A)
• CONN panel: keyed selector, choke, AMF/RSS connector, thermal circuit breaker, Oil Guard, 10 A fuse, 12 V DC output
• Three AS/NZS 3112 15 A 250 V outlets
• Roll bar frame, two solid rubber wheels, folding handle, two lifting points
• Dimensions 840 x 615 x 753 mm, dry weight 109 kg

S Series – Portable Generators

Professional power. Premium performance.

The S Series is a top-tier range of portable generators engineered for intensive professional use. With robust Honda petrol or Yanmar and Lombardini diesel engines, these sets are built to deliver dependable power in the most demanding environments, from disaster relief and rental fleets to industrial and construction sites.

Designed around safety, runtime and ease of use, S models feature large 24 to 27 litre fuel tanks, control panels with optional connectivity for AMF automatic mains failure and remote start systems, and a compact one-sided layout that centralises the controls for fast access. Heavy-duty tubular steel roll bar frames with removable side covers and integrated transport kits make handling and transport straightforward.

Range Key Features

• Honda GX petrol or Yanmar and Lombardini diesel engines
• Recoil or electric start depending on model
• Large fuel tanks with analogue fuel gauge, bayonet filler cap and in-line fuel filter
• AMF and RSS compatible CONN control panels on selected models
• Australian AS/NZS 3112 15A outlets
• Two solid rubber wheels, non-slip folding handle and two lifting points
• Optional differential (DPP) protection

Frequently Asked Questions

What is the CONN connector for?

CONN models carry a connector on the control panel for the optional AMF automatic mains failure panel or the RSS wireless remote start/stop. The AMF panel monitors the mains, starts the generator and transfers the load when the supply fails, then stops the set when the grid returns. The RSS gives wireless start and stop from up to 90 metres.

Which applications suit the S Series?

Intensive professional use: construction sites, rental fleets, disaster relief, farms, events and backup for small business, anywhere a portable set has to run long hours day after day.

How long will the S8000 run on a full tank?

The 27 litre tank gives 12.50 hours at 75% load, or 9.41 hours at 100% load, using 2.16 litres per hour at 75%. The analogue fuel gauge lets you track the level at a glance.
