S9000 8.8kVA Single Phase Diesel Generator

Description

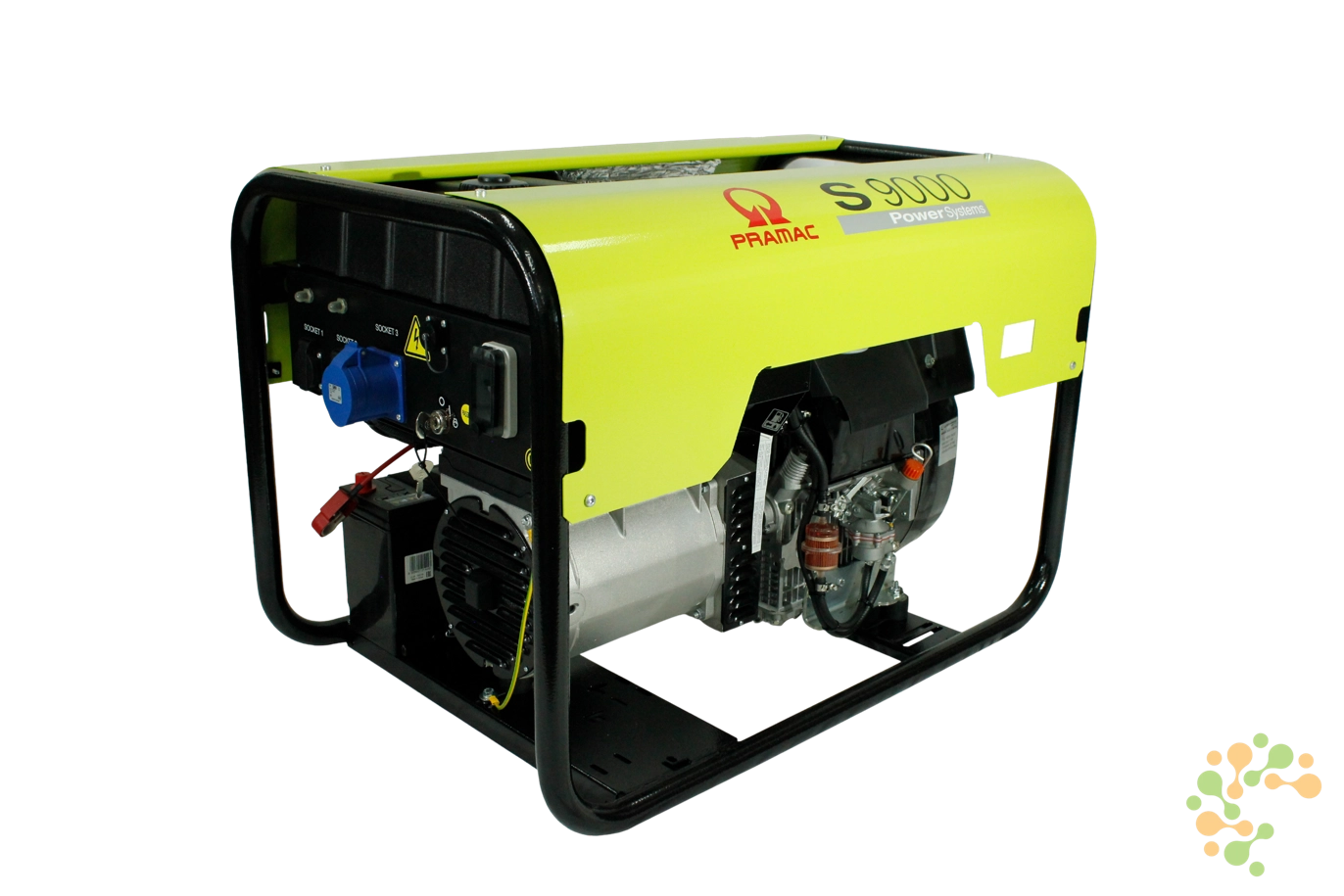

Pramac S9000 – 8.8 kVA Single Phase Diesel Generator

The complete diesel package. Lombardini engine, brushless alternator, three Australian outlets.

The S9000 diesel generator delivers 8.8 kVA / 7.9 kW emergency standby and 7.6 kVA / 6.8 kW continuous power at 230 V, 50 Hz single phase, 0.9 power factor, from a Lombardini 25LD330 engine with 12 V electric start. The 654 cm³ air cooled diesel runs at 3000 RPM with mechanical governor and a 1.8 litre oil capacity, driving a brushless class H, IP23, two pole alternator with capacitor voltage regulation.

The 24 litre tank runs 11.06 hours at 75% load and 8.25 hours at 100%, using 2.17 litres per hour at 75%. At 157 kg dry and 960 x 641 x 667 mm it is a two person lift, and transport kits with fixed or folding handles are available.

The control panel is mounted on the genset with a keyed off/on/start selector, oil pressure indicator, thermal breaker and low oil pressure protection. Outlets are three AS/NZS 3112 15 A 250 V sockets.

S9000 at a glance

• 8.8 kVA / 7.9 kW emergency standby, 7.6 kVA / 6.8 kW continuous
• Lombardini 25LD330, 654 cm³, air cooled diesel, 3000 RPM, 12 V electric start, 1.8 L oil capacity
• Brushless class H alternator, IP23, 2 pole, capacitor regulation
• 230 V, 50 Hz, single phase, 0.9 power factor
• 24 L fuel tank, 2.17 L/h at 75% load, 2.91 L/h at 100% load
• Runtime 11.06 h at 75% load, 8.25 h at 100% load
• Keyed selector, oil pressure indicator, thermal breaker, low oil pressure protection
• Three AS/NZS 3112 15 A 250 V outlets
• Dimensions 960 x 641 x 667 mm, dry weight 157 kg

S Series – Portable Generators

Professional power. Premium performance.

The S Series is a top-tier range of portable generators engineered for intensive professional use. With robust Honda petrol or Yanmar and Lombardini diesel engines, these sets are built to deliver dependable power in the most demanding environments, from disaster relief and rental fleets to industrial and construction sites.

Designed around safety, runtime and ease of use, S models feature large 24 to 27 litre fuel tanks, control panels with optional connectivity for AMF automatic mains failure and remote start systems, and a compact one-sided layout that centralises the controls for fast access. Heavy-duty tubular steel roll bar frames with removable side covers and integrated transport kits make handling and transport straightforward.

Range Key Features

• Honda GX petrol or Yanmar and Lombardini diesel engines
• Recoil or electric start depending on model
• Large fuel tanks with analogue fuel gauge, bayonet filler cap and in-line fuel filter
• AMF and RSS compatible CONN control panels on selected models
• Australian AS/NZS 3112 15A outlets
• Two solid rubber wheels, non-slip folding handle and two lifting points
• Optional differential (DPP) protection

Frequently Asked Questions

What is the CONN connector for?

CONN models carry a connector on the control panel for the optional AMF automatic mains failure panel or the RSS wireless remote start/stop. The AMF panel monitors the mains, starts the generator and transfers the load when the supply fails, then stops the set when the grid returns. The RSS gives wireless start and stop from up to 90 metres.

Which applications suit the S Series?

Intensive professional use: construction sites, rental fleets, disaster relief, farms, events and backup for small business, anywhere a portable set has to run long hours day after day.

How long will the S9000 run on a full tank?

The 24 litre tank gives 11.06 hours at 75% load, or 8.25 hours at 100% load, using 2.17 litres per hour at 75%.

Is an automatic transfer switch (ATS) included?

No. An automatic transfer switch is not included unless it is listed in the product description above. Ozwide Power can supply a correctly rated ATS with the generator, so ask for a package price when you enquire.
