BESS LX 45/90
LX series mobile energy storage unit for off-grid and hybrid site power.
Wishlist
Wishlist
Description
LX Series – Mobile Energy Storage
Hybrid. Efficient. Built for Flexible Site Power.

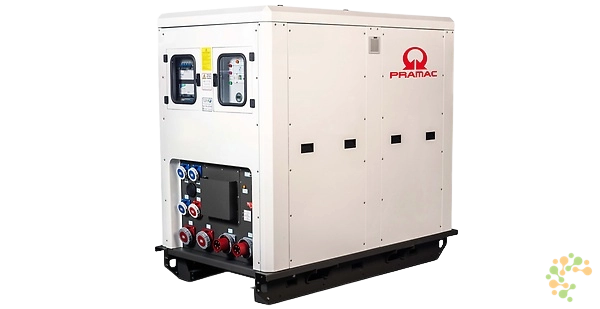

The LX 45/90 is a Pramac battery energy storage system designed to support off-grid, hybrid, solar, generator-assisted and grid-connected power applications. It helps reduce generator run hours, fuel consumption and site noise while providing stable power for commercial, rental and industrial environments.
The configured LX 45/90 package combines energy storage, power conversion and control equipment to support Australian 50 Hz site applications. Key configuration details include rated output: continuous 45 kVA, peak 112.5 kVA, continuous 36 kW, peak 90 kW; electrical configuration: 230/400 V, 50 Hz, single- or three-phase; battery capacity: 90 kWh.
Key Features
- Model: LX 45/90
- Power rating: continuous 45 kVA, peak 112.5 kVA, continuous 36 kW, peak 90 kW
- Electrical configuration: 230/400 V, 50 Hz, single- or three-phase
- Fuel / energy type: Battery / Hybrid
- Battery type: Lead acid gel OPzVS
- Battery capacity: 90 kWh
- Usable energy: 72 kWh
- Battery cycle life: 2000 cycles
- Dimensions: 2000 x 1200 x 2000 mm
- Weight: 4000 kg
- Designed to support generator hybridisation, load smoothing and reduced engine run hours
These systems suit sites looking to reduce generator runtime, support renewable input, stabilise loads and provide flexible power for construction, events, rental, mining and industrial operations.
Technical Information
| Weight | 4000 kg |
|---|---|
| Dimensions | 200 × 120 × 200 cm |
| Brand | Pramac |
| Model | LX 45/90 |
| Product Type | Battery energy storage system |
| Fuel / Energy Type | |
| Phase | |
| Voltage | |
| Frequency | |
| Continuous Output | |
| Battery Type | |
| Battery Capacity | |
| Usable Energy | |
| Dimensions | |
| Weight |
Brand
Pramac
Pramac is a global manufacturer of power generation equipment, delivering reliable portable, standby and industrial generators for residential, commercial and industrial applications. Built for performance and durability, Pramac products are trusted worldwide for dependable backup and prime power solutions. As an authorised Australian distributor, Ozwide Power supplies genuine Pramac generators, parts and expert after-sales support.
