Description

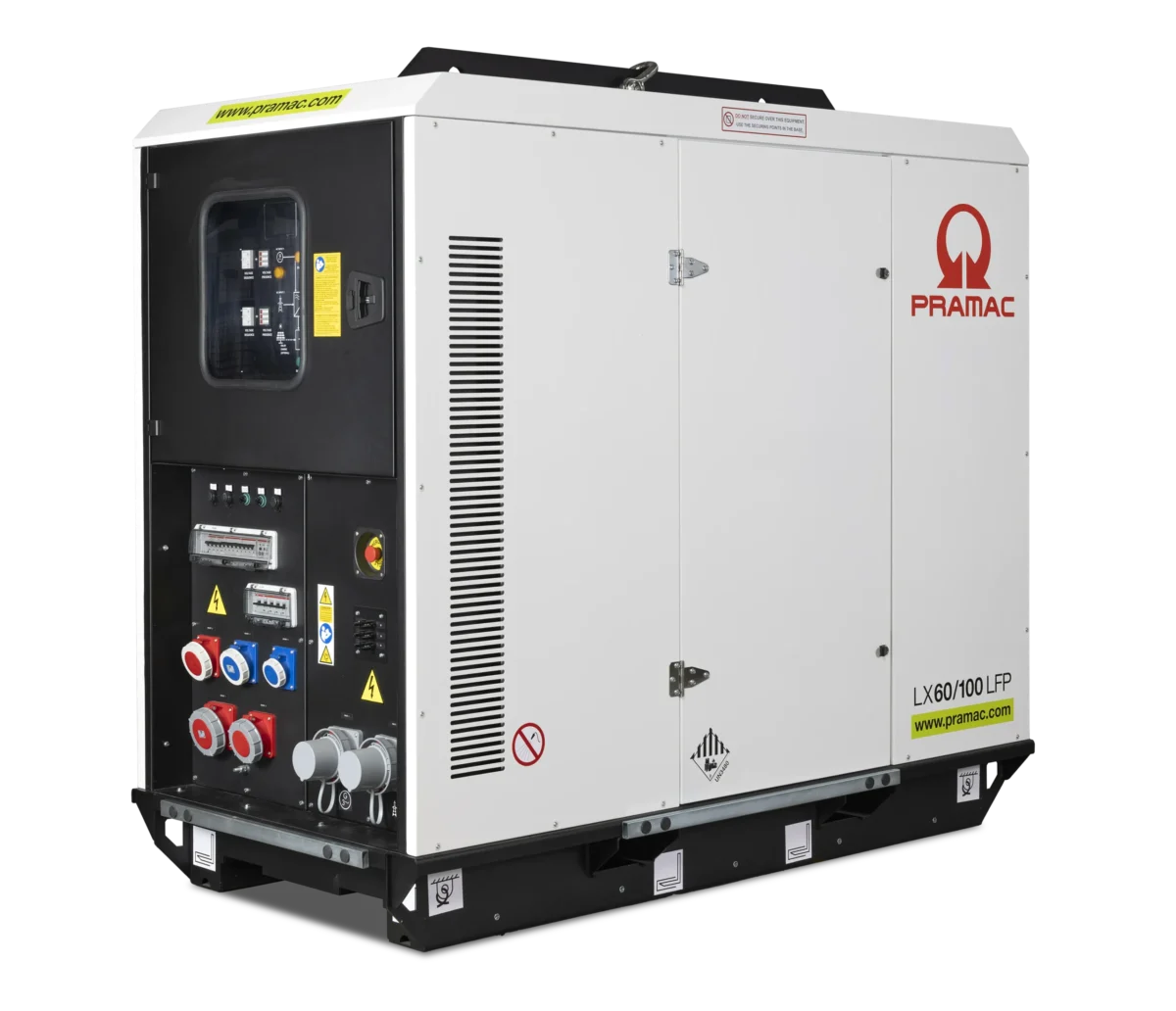

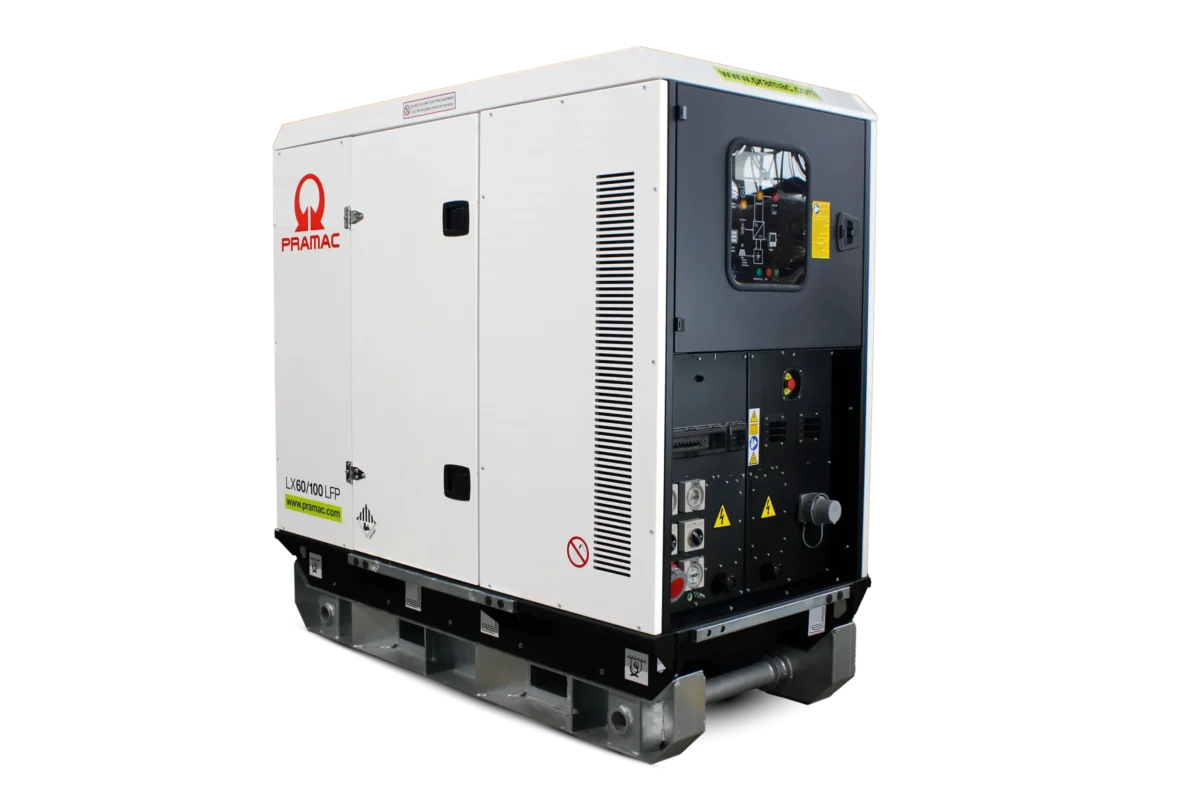

The LX 60/100 LFP is a high-capacity mobile battery energy storage system designed to deliver reliable, low-noise power for demanding temporary and hybrid power applications. With a 60kVA continuous three-phase output (400V / 50Hz) and up to 120kW peak power (5 seconds), it’s ideal for sites that experience load surges, motor starts, and variable demand—without relying on a generator running constantly.
Built on Li-Ion LFP (Lithium Iron Phosphate) battery chemistry, the LX 60/100 LFP supports heavy daily use with a 6000-cycle battery design life and a high usable energy capacity—making it well suited to rental fleets, construction, infrastructure projects, and event power where dependable performance and low operating costs matter.
Use the battery to carry low-to-medium loads and handle peaks, while the generator only runs when required—improving fuel efficiency and reducing servicing. The system includes an automatic generator auto-start signal and dedicated grid and diesel generator input connections (125A) for streamlined hybrid setups.
Built for real sites and fleets
- Three-phase output for commercial/site distribution
- User-friendly operator interface for simple setup and operation
- GSM remote monitoring (device included) for visibility across multiple locations
- IP44 protection and a wide operating temperature range -10°C to +50°C
- Low-noise operation: 58 dB(A) @1m LpA
Energy & performance
- Nominal energy capacity: 96.0 kWh
- Usable energy (AC side @ 90% DoD): 82.9 kWh
- Battery configuration: 20 LFP modules (4.8kWh each), 48V DC
- Inverter system: 6 inverters, 10kVA each, with power factor range ±0.8
- Pass-through capacity: 125A (supports common high-current site distribution)
Safety, protection & controls
Designed for confident operation in the field, the LX 60/100 LFP includes:
- Inverter protections: short circuit, overload, over temperature, low battery

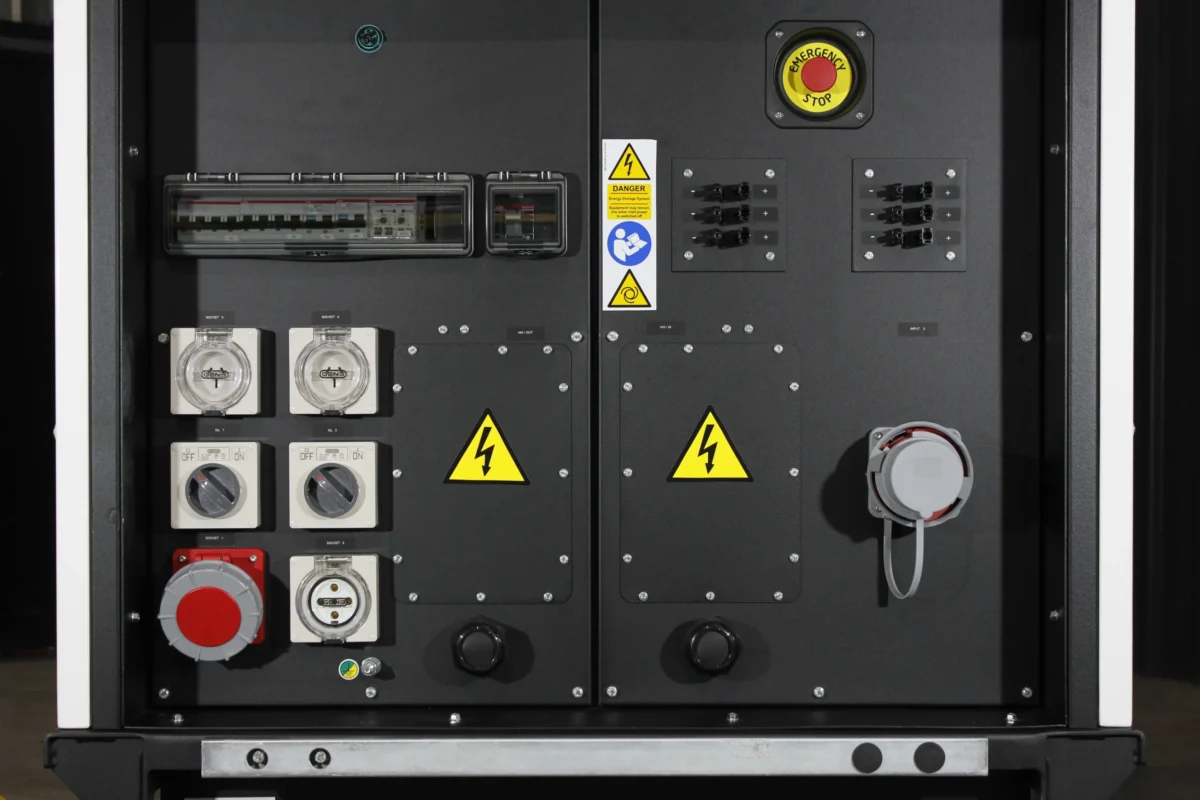

- Status control panel, battery condition display, and battery main isolator
- Remote monitoring device included
Technical Information
| Weight | 2250 kg |
|---|---|
| Dimensions | 2240 × 1160 × 2118 cm |
