P9000 (1Ph)

Description

P Series Compact Generators

Reliable Mobile and Backup Power

The P Series range delivers dependable power in a compact, rugged design built for both mobile and standby applications. Available in diesel and petrol configurations from 4 to 18 kVA, these generators are engineered to perform in demanding environments while remaining easy to transport, operate and maintain.

Designed with a focus on durability and user convenience, the P Series incorporates air- and water-cooled engines running at 3000 rpm, delivering strong performance across residential sites, commercial operations and construction environments. Its efficient acoustic insulation keeps noise levels low, making it ideal for locations where quiet operation is essential.

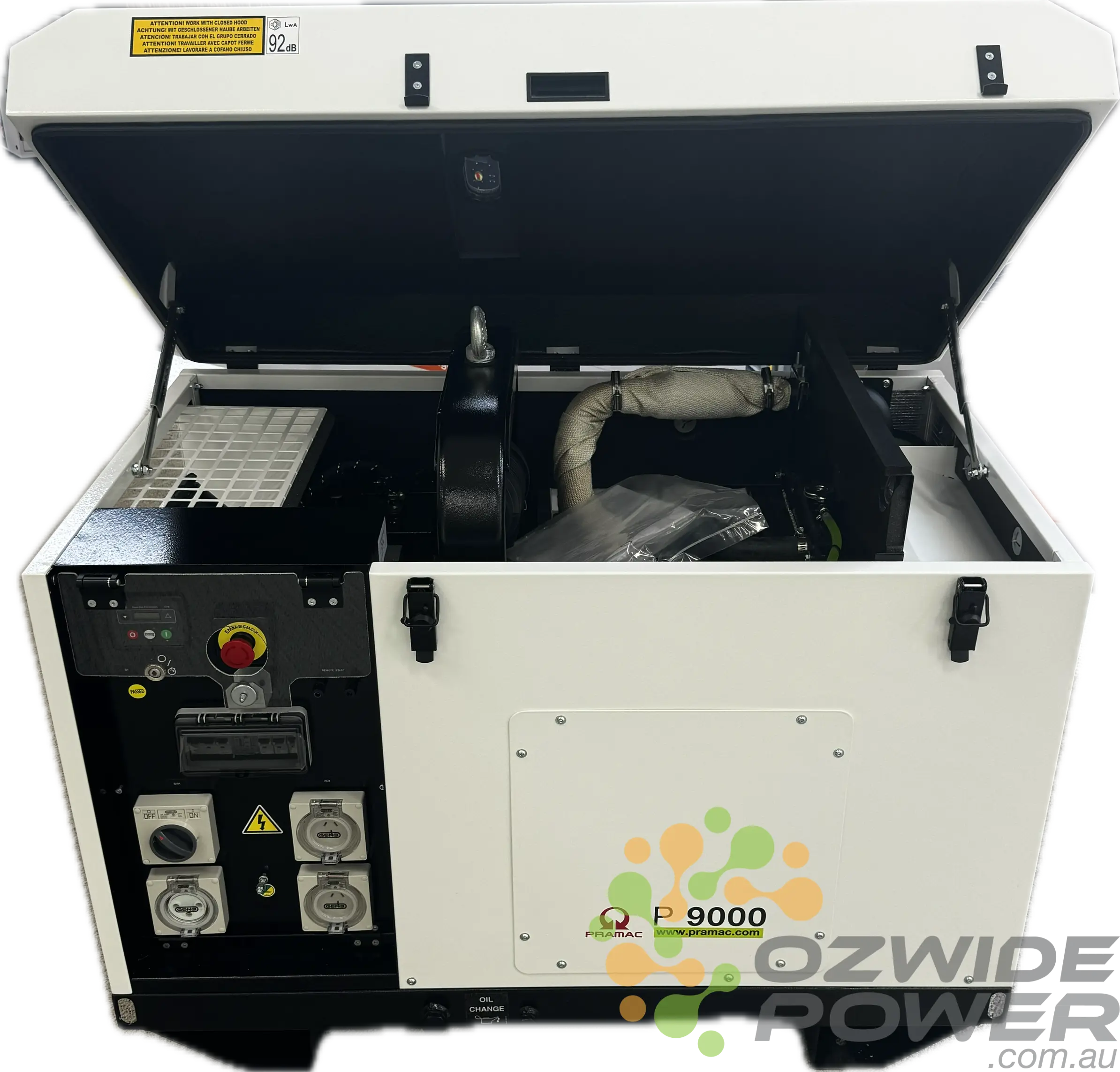

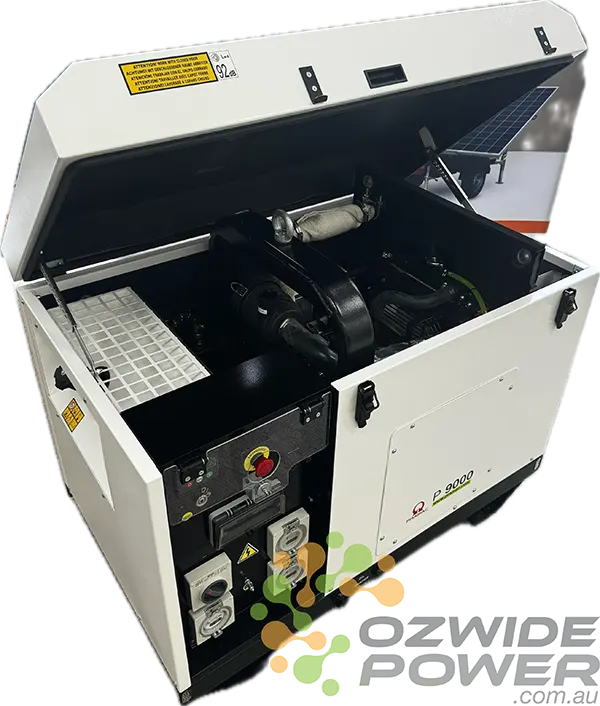

A reinforced baseframe with fork pockets and a single lifting point supports safe, effortless handling. Service access is simplified with side doors and an opening roof, reducing downtime during maintenance. The P Series also supports a wide range of power distribution options, including 230V IP66 and 3P+N+T socket configurations, allowing easy integration into existing site setups.

Optional upgrades such as AMF panels, remote start, lockable fuel caps, site trailers, and enhanced electrical protections make it adaptable to a variety of operational requirements.

Combining compact size, low noise, and proven engine technology, the P Series stands as a practical, reliable choice for anyone needing stable power, whether for planned operations or unexpected outages.

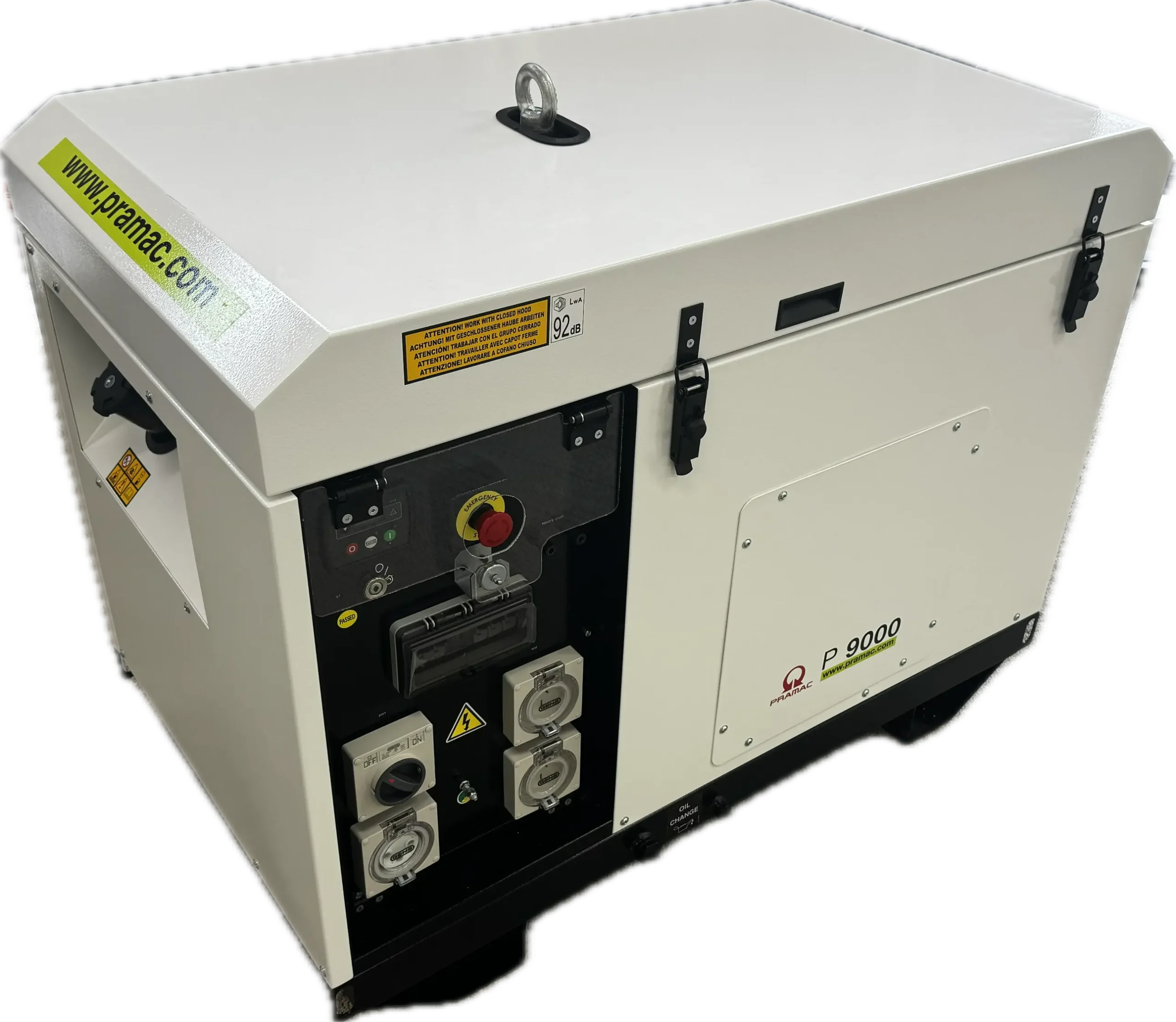

P9000 – 8 kVA Single Phase

The P9000 diesel generator delivers 8.0 kVA / 7.2 kW maximum power and 6.5 kVA / 5.9 kW continuously at 230V, 50Hz single phase. It runs a water cooled Yanmar 2TNV70-APGE Stage V engine with electric start and mechanical governor, paired with a brushless NSM alternator with AVR voltage regulation held to within 2%.

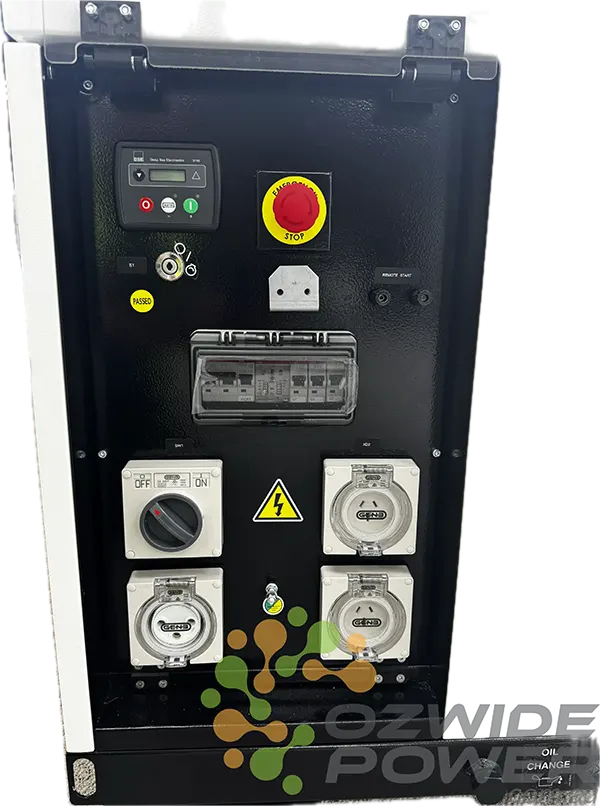

A 35 litre integrated tank gives 17.3 hours of running at 75% load, and the fully bunded base frame with fork pockets and a single lifting point makes it straightforward to move around a site. Sound attenuation brings it down to 64 dB(A) at 7 metres. Outlets are two auto-switched 2P+T 230V 15A sockets and one 2P+T 230V 32A socket with lockable switch, protected by a circuit breaker and differential protection, with LCD control panel, two wire remote start and AS3000 wiring throughout.

Frequently Asked Questions

How can the P Series generator be moved and handled?

The P Series is easy to transport, thanks to the forkable baseframe and the single lifting point. The side door/opening roof allows for easy and fast servicing.

What optionals are available for the P Series?

AMF available as an optional extra. This accessory allows control of all the generator’s functionalities. It permits the transfer of the load on the generator in the event of a mains failure. Conversely, as soon as the AMF system detects the power grid, it stops the generator.

Also available as optional extras: lockable fuel cap, site trailer, remote start/stop device, differential or isometer protection.

Which are the most suitable applications for the P Series?

The robust and compact design makes the P Series the number one choice as an entry level generator for mobile applications. Thanks to the sturdy design and low noise, they are the perfect generators for larger work sites and residential areas where low noise level is a priority.

How long will the P9000 run on a full tank?

The 35 litre integrated tank gives 17.3 hours at 75% load, or 13.2 hours at 100% load, with a fuel level sensor and a lockable external filling point for quick refuelling.
