GSW22P 17.6kVA Single Phase Diesel Generator

Description

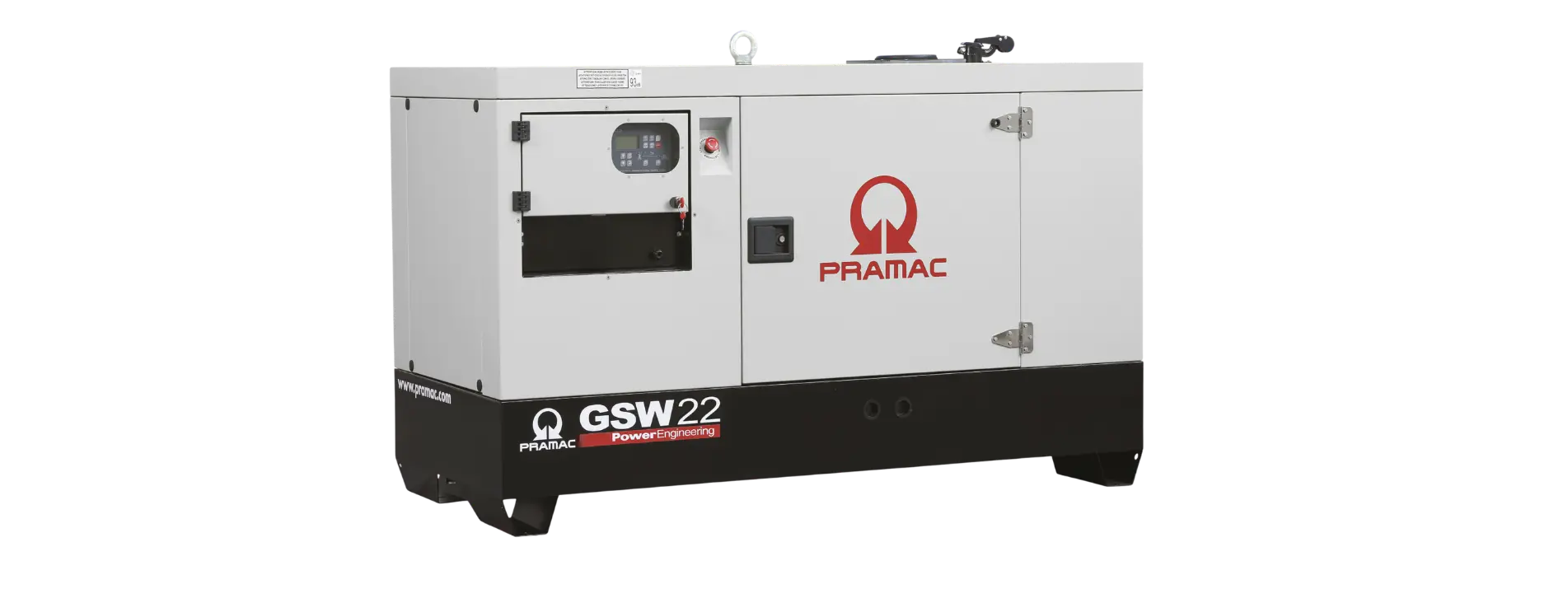

Pramac GSW22P – 17.6 kVA Single Phase Diesel Generator

Perkins power. Leroy Somer output. 130 litre tank.

The GSW22P single phase diesel generator delivers 17.6 kVA / 17.6 kW standby and 16 kVA / 16 kW prime power from a Perkins 404A-22G1, a four cylinder, 2.2 litre, naturally aspirated, water-cooled engine with mechanical governor and 12 V electric start. Output is delivered through a brushless Leroy Somer LSA40 M5 alternator at 230 V, 50 Hz, single phase, unity power factor, with class H insulation, IP23 protection, AREP excitation, R221 electronic voltage regulation held inside 2% and 88.2% efficiency at 75% load. Maximum current is 76.52 A behind a 75 A circuit breaker.

The soundproof canopy is built from modular zinced steel panels with rock wool soundproofing, fully weatherproof, with an efficient residential silencer, wide lateral access doors on stainless steel hinges with lockable plastic handles, a control panel door with window, a laterally protected air inlet, roof exhaust outlet with protective grid and a single detachable lifting eye. The welded steel baseframe carries properly sized anti-vibration mountings and welded support legs. Noise is 66 dB(A) at 7 metres with a guaranteed sound power level of 95 dB(A). The unit measures 1800 x 850 x 1380 mm and weighs 780 kg dry.

The 130 litre plastic fuel tank with filler neck, air breather and minimum level sensor runs 36.31 hours at 75% prime power and 27.54 hours at full load. The MCP manual control panel carries a single phase voltmeter and ammeter, hours counter, key start/stop selector with glow plug preheating, an emergency stop button on the canopy side and alarm and shutdown protection for low fuel level, battery charger failure, low oil pressure, high engine temperature and earth fault. The ACP automatic control panel adds digital metering, four operating modes, remote start, an automatic battery charger and an RS232 port. An extended 210 litre fuel tank supplement is available, taking the unit to 1805 x 996 x 1597 mm.

GSW22P at a glance

• 17.6 kVA / 17.6 kW standby, 16 kVA / 16 kW prime power
• Perkins 404A-22G1, 4 cylinder in line, 2216 cm³, naturally aspirated, water cooled, mechanical governor
• Leroy Somer LSA40 M5 brushless alternator, 4 pole, class H, IP23, R221 AVR inside 2%
• 230 V, 50 Hz, single phase, unity power factor
• Maximum current 76.52 A, 75 A circuit breaker
• 130 L plastic fuel tank with minimum level sensor
• Fuel consumption 3.58 L/h at 75% PRP, 4.72 L/h at 100% PRP
• Runtime 36.31 h at 75% PRP, 27.54 h at 100% PRP
• Noise: 66 dB(A) @ 7 m, guaranteed LWA 95 dB(A)
• Control panel: MCP manual or ACP automatic, specify when ordering
• 12 V electric start, 60 Ah battery, 10.6 L oil capacity, 7 L coolant capacity
• Dimensions 1800 x 850 x 1380 mm, dry weight 780 kg

Optional supplements include remote control (RCG) and remote signal (TLP) modules for the ACP, premium kit with leak proof tray, leakage sensor and manual oil drain pump (KPR), automatic fuel pump (AFP), extended 210 litre fuel tank and coolant pre-heating (PHS). Site trailer, road trailer and a 60 A load transfer switch are available as accessories.

Ratings to ISO 8528-1:2005 with engine performance to ISO 8528/1, ISO 3046/1:1986 and BS 5514/1; alternator to IEC 60034, NEMA MG 1.32-33, ISO 8528-3, CSA C22.2 and UL 1146, manufactured under ISO 9001 and ISO 14001.

GSW Series – Stationary Diesel Generators

Reliable. Silent. Ready for Any Demand.

The GSW Series is a proven line of stationary diesel generators engineered for dependable long-term performance across industrial, commercial and critical-power environments. Designed with durability, acoustic comfort and operational efficiency in mind, each generator integrates robust mechanical components with advanced control systems to deliver stable and reliable power, day after day, in all conditions.

Key Features

• Perkins engines paired with Mecc Alte or Leroy Somer brushless alternators
• Sound-attenuated, weatherproof canopies built from modular zinced steel panels with rock wool soundproofing
• Integrated plastic fuel tank with minimum level sensor and extended tank options
• MCP manual, MPF manual full option or ACP automatic control panels
• Lockable access doors, emergency stop and single detachable lifting eye
• Ratings to ISO 8528 with engine performance to ISO 3046/1 and BS 5514/1

Optional equipment includes remote control (RCG) and remote signal (TLP) supplements, adjustable differential protection (ADI), four pole circuit breaker (TIF), external terminal board (ETB), premium kit with leak proof tray and oil drain pump (KPR), rental kit (KRT), coolant pre-heating (PHS) and a load transfer switch (LTS).

Frequently Asked Questions

Which control panels are available on the GSW Series?

The MCP manual control panel with analogue instrumentation, the MPF manual control panel full option with enhanced instrumentation and IP67 sockets, or the ACP automatic control panel with a digital control unit, automatic mains failure operation, automatic battery charger and RS232 communication.

Can the GSW be used for automatic standby?

Yes. With the ACP automatic control panel and the optional LTS load transfer switch the set will start on mains failure, take the load and shut down again when the mains returns.

How long will the GSW22P single phase run on a full tank?

The 130 litre tank gives 36.31 hours at 75% prime power or 27.54 hours at full load, using 3.58 and 4.72 litres per hour respectively. An extended 210 litre tank is available as a supplement.

Is an automatic transfer switch (ATS) included?

No. An automatic transfer switch is not included unless it is listed in the product description above. Ozwide Power can supply a correctly rated ATS with the generator, so ask for a package price when you enquire.
