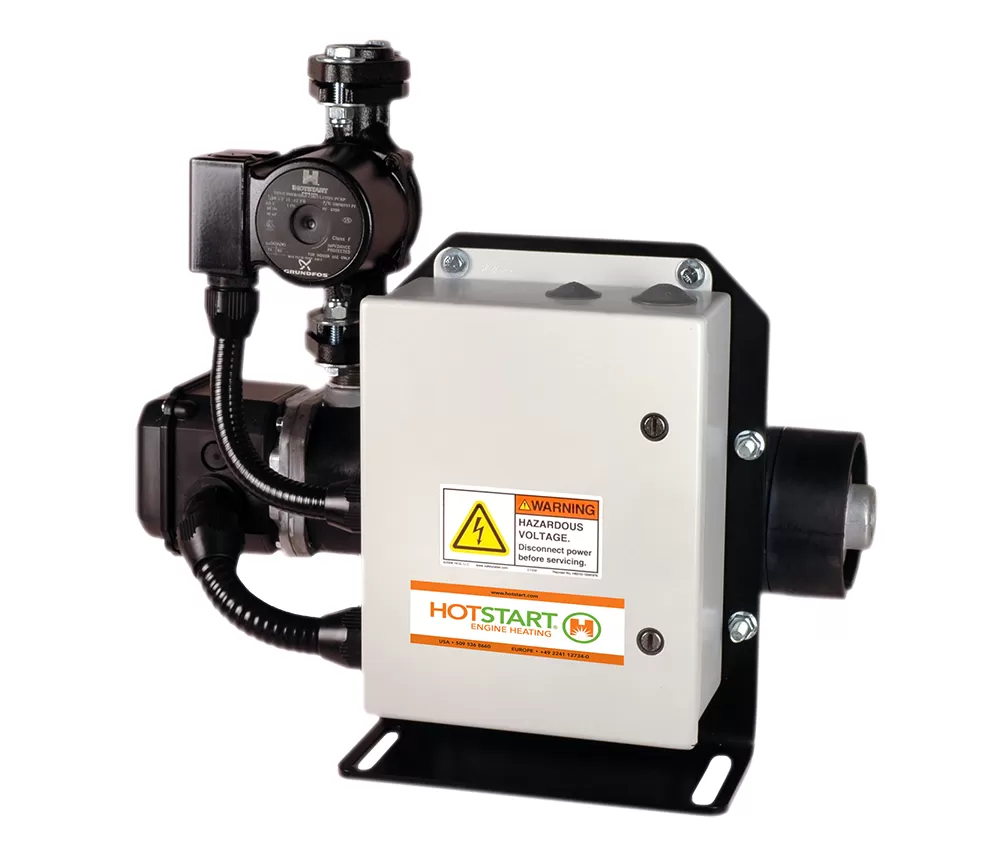

CSM Engine Heater
HOTSTART HOTflow® CSM Engine Heater — HOTSTART’s HOTflow® engine heater (CSM Model) features a thermostat, pump and all required controls.
Wishlist
Wishlist
Description
HOTSTART’s HOTflow® engine heater (CSM Model) features a thermostat, pump and all required controls. Forced circulation of the coolant delivers uniform heating throughout the entire engine, extends element life and offers a significant reduction in electrical consumption. The HOTflow® CSM operates automatically when provided contacts are supplied with a 24 V DC signal from the engine. Meets requirements for installation on any UL 2200 listed generator. Single & Three Phase, 3000–12000 Watts. * CE compliant/union pump configuration. Other voltages available. Consult the factory.
- Frequency: 50 Hz
- Thermostat Range: ON 100 °F (38 °C) / OFF 120 °F (49 °C)
- Dimensions: Style A: Height (H) 15.0″ (383 mm), Width (W) 19.4″ (493 mm), Depth (D) 9.5″ (242 mm). Style B: Height (H) 17.0″ (434 mm), Width (W) 19.4″ (493 mm), Depth (D) 9.5″ (242 mm). If a union pump is installed, the model’s height (H) will decrease by approximately 1.5″ (38 mm).
- Weight: Style A: 37 lbs. (16.8 kg). Style B: 54 lbs. (24.5 kg).
Available models / part numbers — order by part number (all currently out of stock, contact us to order):
| Part No. | Voltage | Phase | Power |
|---|---|---|---|
| CSM1030J-5A0 | 230 V | 1 | 3 kW |
| CSM3030A-5A0 | 400 V | 3 | 3 kW |
| CSM1060J-5A0 | 230 V | 1 | 6 kW |
| CSM3060A-5A0 | 400 V | 3 | 6 kW |
| CSM1090J-5A0 | 230 V | 1 | 9 kW |
| CSM3090A-5A0 | 400 V | 3 | 9 kW |
| CSM1120J-5A0 | 230 V | 1 | 12 kW |
| CSM3120A-5A0 | 400 V | 3 | 12 kW |
Technical Information
| Weight | 17.64 kg |
|---|---|
| Dimensions | 50.11 × 24.6 × 38.93 cm |
Brand
Hotstart
Hotstart designs and manufactures engine pre-heating solutions — coolant, oil and immersion heaters, in-block heaters, battery warmers, thermostats and control systems — that keep diesel and gas engines, generators and compressors ready to start in cold conditions. Oz Wide Power supplies the genuine Hotstart range Australia-wide.
