BW Battery Thermal Wrap

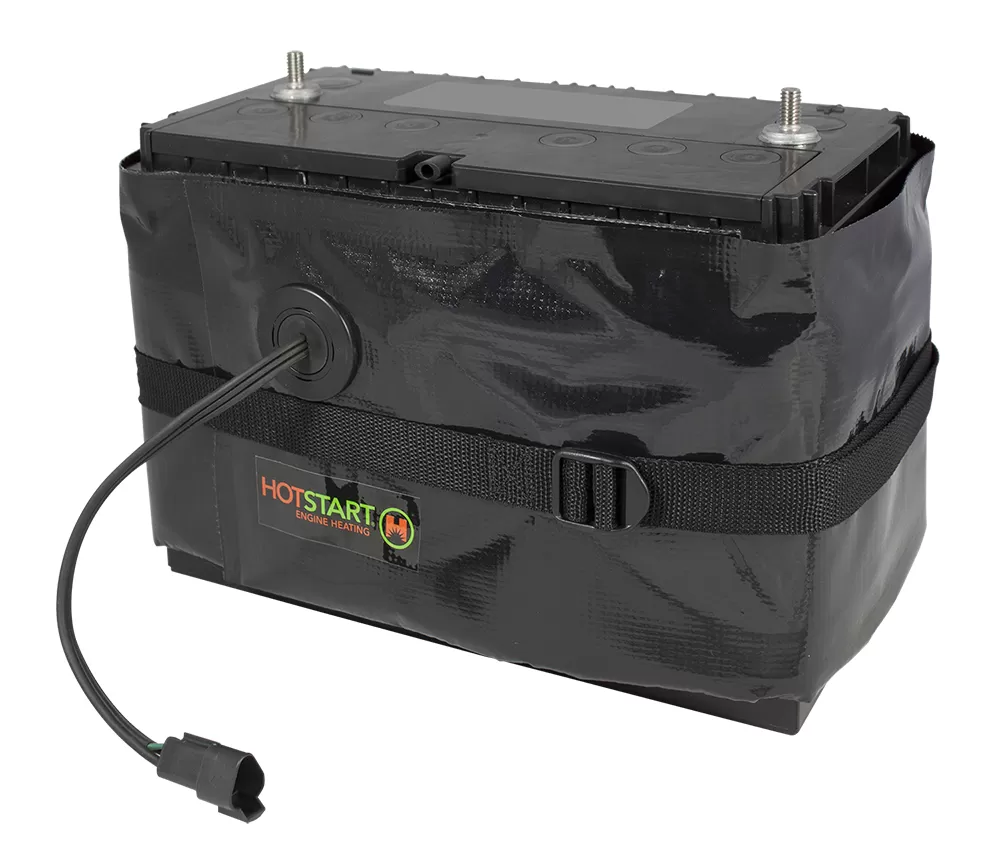

HOTSTART BW Battery Thermal Wrap – UL Recognized (NEMA) — UL Recognized thermostatically controlled battery thermal wraps provide optimum heating regardless of ambient temperature.
Wishlist
Wishlist
Description
HOTSTART BW Battery Thermal Wrap – UL Recognized (NEMA). UL Recognized thermostatically controlled battery thermal wraps provide optimum heating regardless of ambient temperature. At 80°F (27°C), the battery will achieve maximum cold cranking amps. Thermostat range: 60°F – 80°F (16°C – 27°C). Thermostat will eliminate battery damage caused by overheating and acid spill. Adjustable strap included for securing wrap around the battery. For optimized heating, properly overlap the wrap and have the thermostat stay in contact with the battery; maximum allowable overlap is 10″ (25 cm). If placed inside a case or box, HOTSTART recommends a minimum clearance of 1.5″ (38 mm) between battery and enclosure wall. Select wrap based on either Battery Group OR Battery Perimeter. Battery wrap comes with a 9″ (229 mm) pigtail. BPC-61 and BPC-62 have a. Power cord sold separately; please order the necessary power cord to complete your wrap assembly. Not all battery groups listed – for wrap sizing, consult the factory.
- Voltage: 240 V
Available models / part numbers — order by part number (all currently out of stock, contact us to order):
| Part No. | Watts | Wrap Length | Battery Group/Perimeter |
|---|---|---|---|
| BW0523006S-000 | 50 W | 34″ (864 mm) | 22NF / 24 – 32″ (610 – 813 mm) |
| BW0623806S-000 | 65 W | 42″ (1067 mm) | 24 24F 24H 24R 24T 25 27 27H 34 34R 35 75 78 GC2 / 32 – 40″ (813 – 1016 mm) |
| BW0824606S-000 | 80 W | 50″ (1270 mm) | 30H 31 / 40 – 48″ (1016 – 1219 mm) |
| BW1025406S-000 | 100 W | 58″ (1473 mm) | 2E / 48 – 56″ (1219 – 1422 mm) |
| BW1326206S-000 | 130 W | 66″ (1676 mm) | 4D 6D / 56 – 64″ (1422 – 1626 mm) |
| BW1627006S-000 | 160 W | 74″ (1880 mm) | 8D / 64 – 72″ (1626 – 1829 mm) |
Technical Information
| Weight | 0.59 kg |
|---|---|
| Dimensions | 37.7 × 32.32 × 3.23 cm |
Brand
Hotstart
Hotstart designs and manufactures engine pre-heating solutions — coolant, oil and immersion heaters, in-block heaters, battery warmers, thermostats and control systems — that keep diesel and gas engines, generators and compressors ready to start in cold conditions. Oz Wide Power supplies the genuine Hotstart range Australia-wide.
