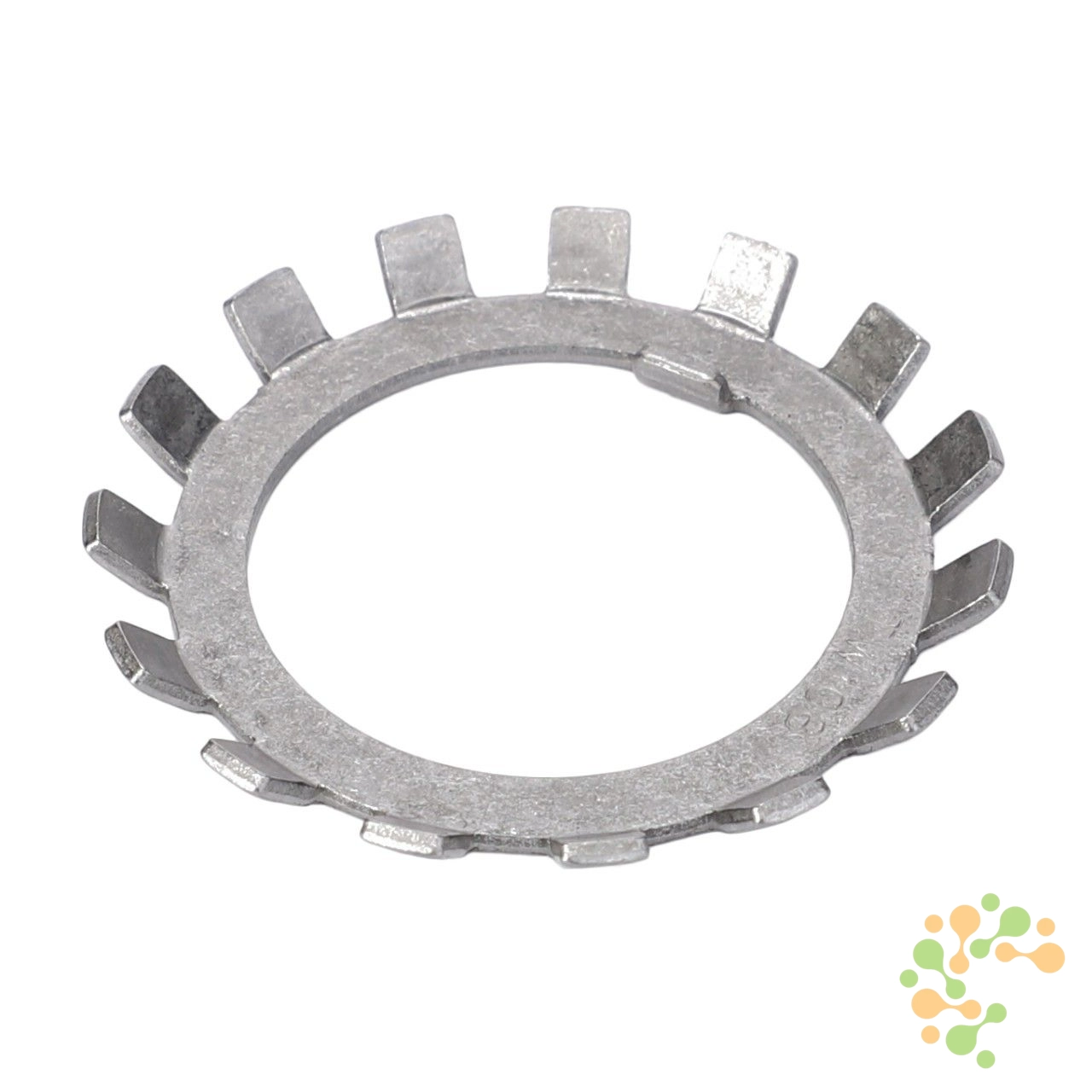

CH1N-5970 AGCO Lock Washer

Description

CH1N-5970 Lock Washer to Suit Challenger MT745C, MT755C and MT765C Rear Bogie (AGCO)

The CH1N-5970 lock washer is the tab washer that locks the N12810 bearing locknut in the bogie wheel hub on Challenger MT745C, MT755C and MT765C track tractors.

– Part number: CH1N-5970 (AGCO)
– Size: 40.5 mm ID x 62.7 mm OD x 1.8 mm
– Cross-reference: CAT 1N-5970
– Weight: 0.09 kg
– Fitment: Challenger MT745C, MT755C and MT765C (2009–2011), rear bogie group 155-5611, item 17
– Lead time: in stock at our supplier at the time of quoting (September 2026), please confirm when ordering

Please send us your machine model and serial number and we will confirm fit before you order.
